Introduction, function, and cleaning method of Vertical Toggle Clamp

Views: 0     Author: Site Editor     Publish Time: 2022-08-11      Origin: Site

Introduction, function, and cleaning method of Vertical Toggle Clamp

Vertical Toggle Clamp, as the name suggests, is a clamp used for vertical installation to fasten objects quickly. Vertical Toggle Clamp is a functional accessory. The Vertical Toggle Clamp is just like the screws we usually use. It alone cannot reflect its function. It must be used on some objects to be able to demonstrate its function and play its role. Next, let's take a look at the introduction, function, and cleaning method of the Vertical Toggle Clamp. Here are some answers.


Here is the content list:

  • What is Vertical Toggle Clamp?

  • The main function of Vertical Toggle Clamp.

  • The cleaning method of Vertical Toggle Clamp.

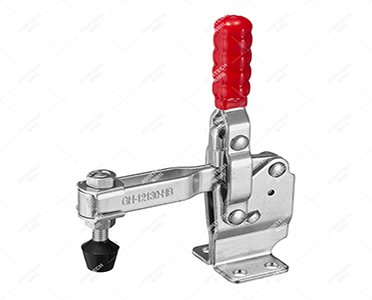

What is Vertical Toggle Clamp?

Vertical Toggle Clamp is generally made of iron or stainless steel. The surface treatment of the Vertical Toggle Clamp is galvanized, and the stainless steel is vibrated and polished. The handle is generally treated with blue rubber encapsulation. Different materials can be used in different application fields. In addition, different styles of Vertical Toggle Clamps can realize the fastening function in different situations. The role of Vertical Toggle Clamp in mechanical processing ensures processing accuracy and makes it stable to shorten the time, improve production efficiency, reduce costs, expand the process range of the machine tool, reduce labor intensity, and reduce technical requirements to facilitate changing workstations, guiding or performing profiling processing.

The main function of Vertical Toggle Clamp.

Vertical Toggle Clamp is used for vertical positioning and has the function of clamping the workpiece. The working principle of the Vertical Toggle Clamp is a double rocker mechanism. When the handle is at the clamping position (also called dead center), the handle is in the vertical direction. The rotation angle of the handle is 80-185 degrees. It is suitable for pressing down the workpiece horizontally or vertically. Vertical Toggle Clamp is more suitable for vertical loading and unloading of workpieces. The clamping force range is 294N--5390N, which is suitable for workpieces with general clamping force.

The cleaning method of Vertical Toggle Clamp.

The container is filled with water in advance, and then the alkali. Soak the molten alkali first, wait for the alkali and water to merge, and then put the Vertical Toggle Clamp into the alkali solution. Finally, heat the temperature, use 30%-50% lye, heat to about 60-80 degrees, soak for 3-5 hours (depending on the amount of electrophoretic paint deposited), and then clean it with a high-pressure water gun or clean water. Doing so can eliminate the acid-base deposits accumulated in the Vertical Toggle Clamp, thereby increasing the service life of the Vertical Toggle Clamp.

Jointech Industrial Co.,Ltd is a manufacturer that designs and manufactures Vertical Toggle Clamp. With a strong design and manufacturing team, strong R&D capabilities, the ability to produce Vertical Toggle Clamp according to customer requirements has been recognized by consumers. If you want to learn more about our company, you can communicate with us on the website. Our official website is https://www.toggle-clamps.com/.
