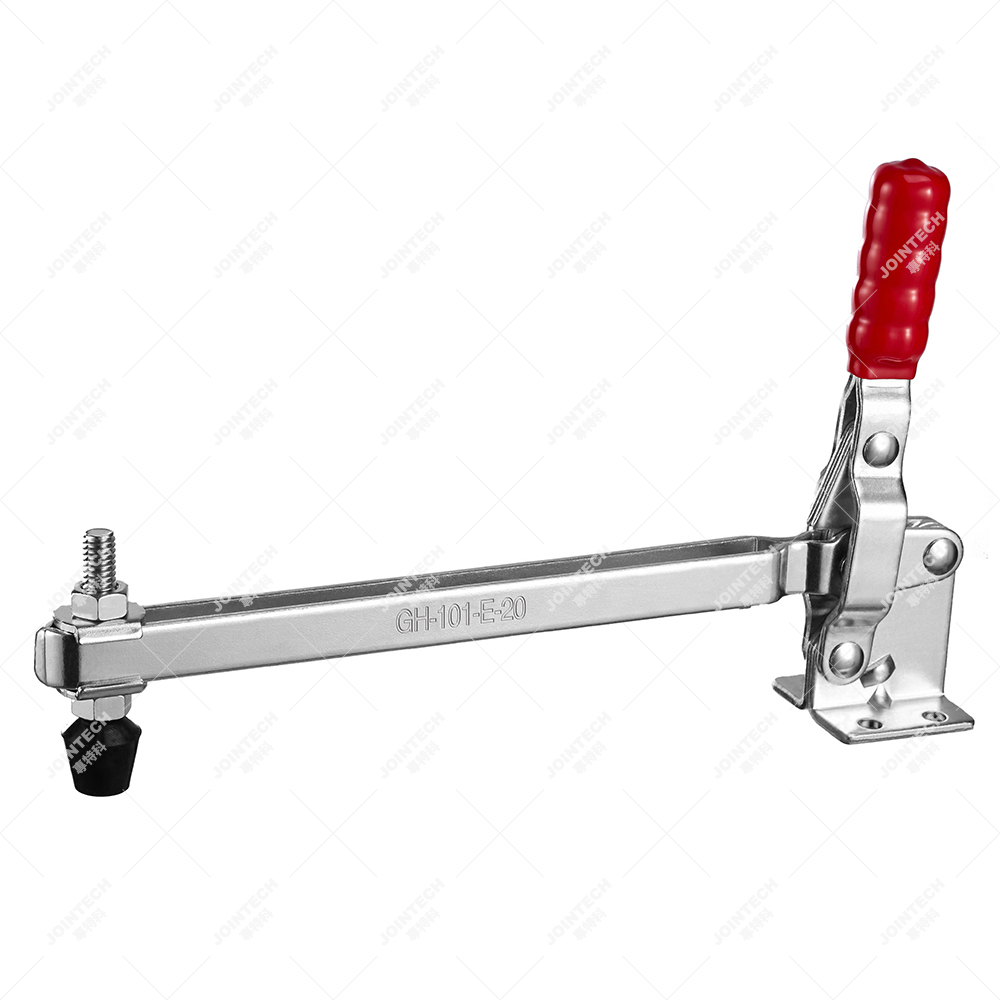

Long Holding U-bar Vertical Toggle Clamp Use in Metal Holding

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

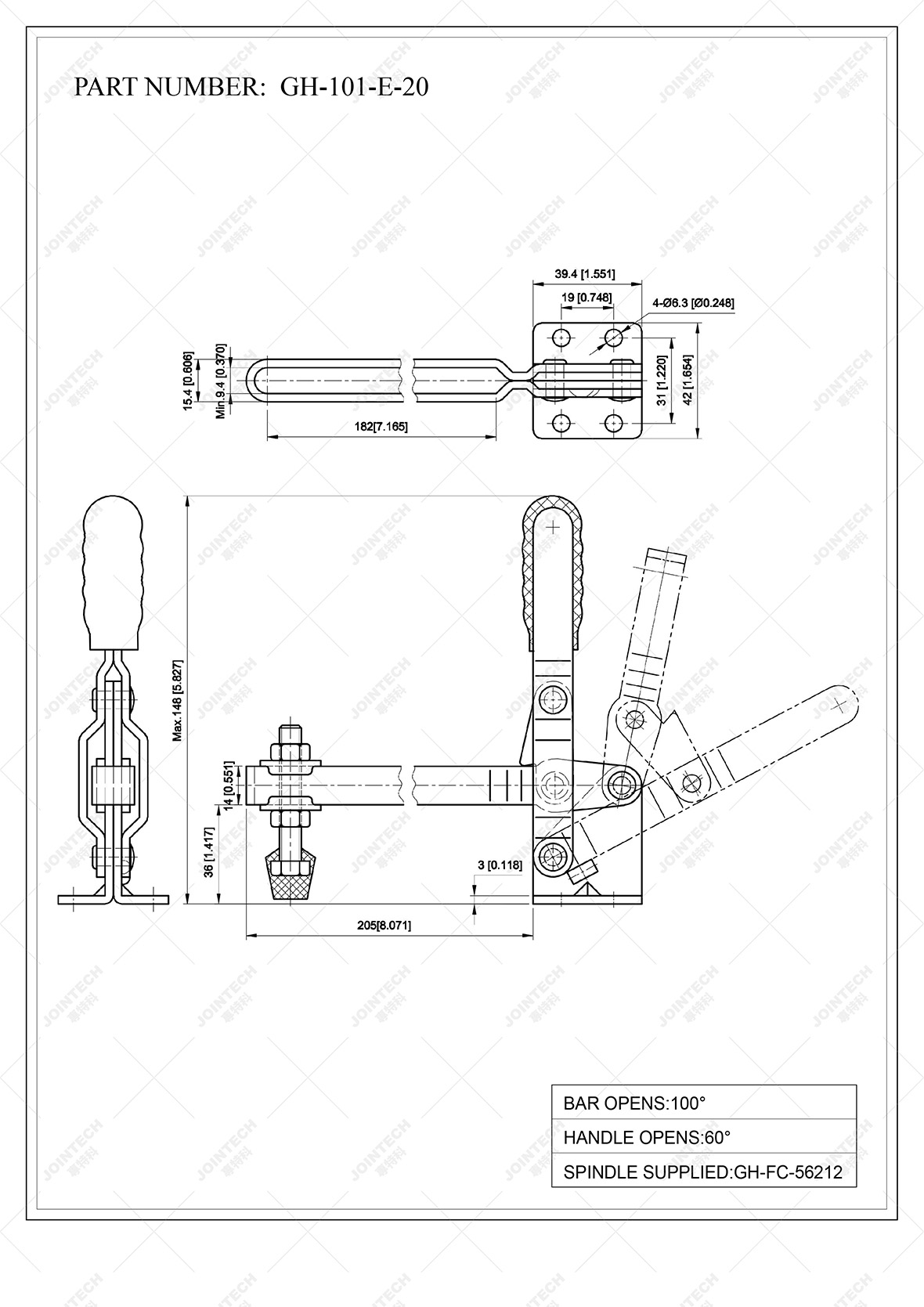

  • GH-101-E-20

  • Jointech

  • 8205700000

Vertical Toggle ClampVertical Toggle Clamp

Weight: 440g

Holding Capacity: 180kg

Bar Opens: 100°

Handle Opens: 60°

Spindle Supplied: GH-FC-56212

Its already superb construction is enhanced with a zinc plated coating for corrosion resistance and optimized durability. Common Uses in Table Saw Jigs and Fixtures Smoker Grills.

The fixing mechanism includes a positioning cover fixed on the screw rod and a positioning column arranged in the middle of the positioning cover.
