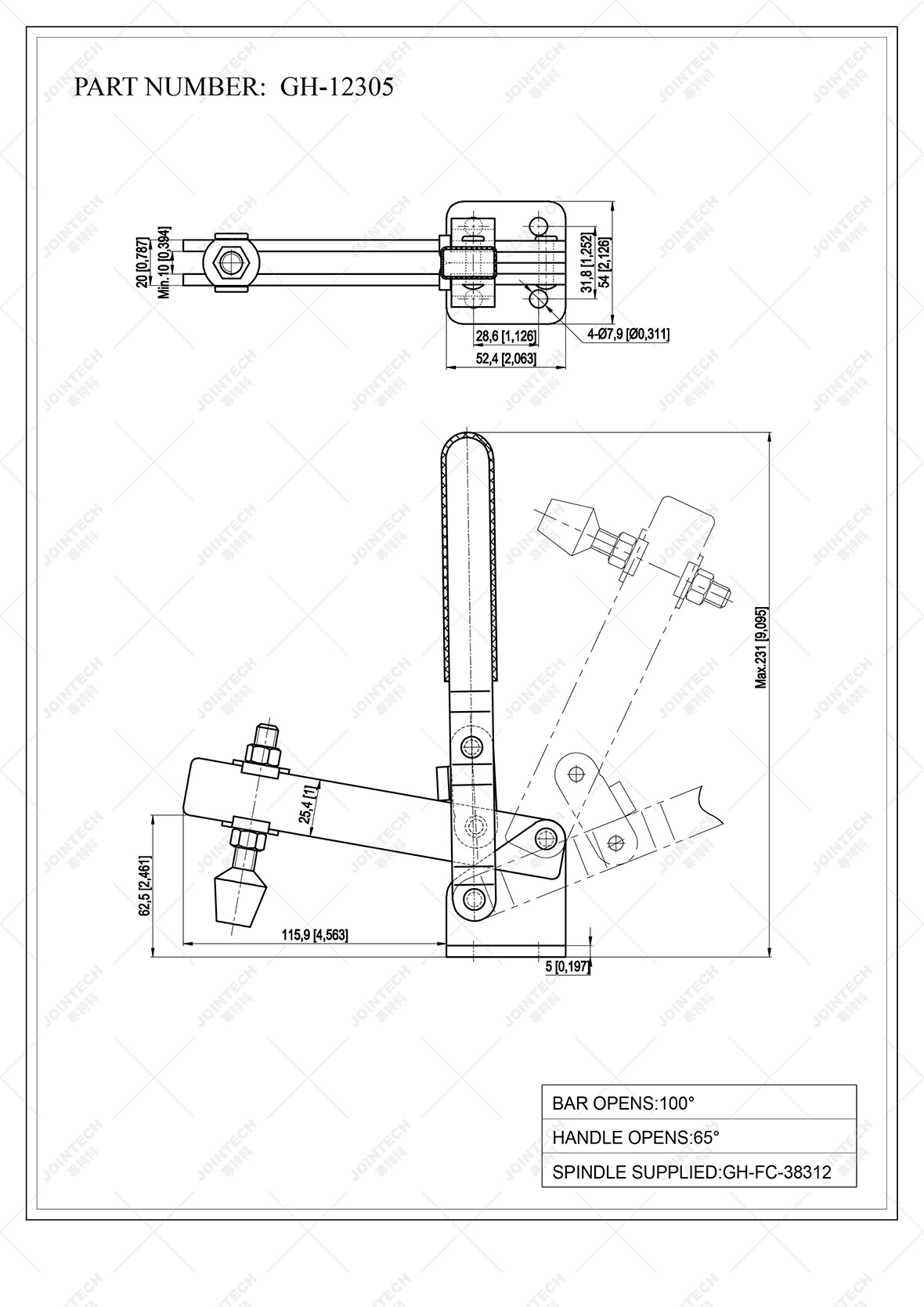

GH-12305
Jointech
8205700000
Weight: 990g
Holding Capacity: 364kg
Bar Opens: 100°
Handle Opens: 65°
Spindle Supply: GH-FC-38312

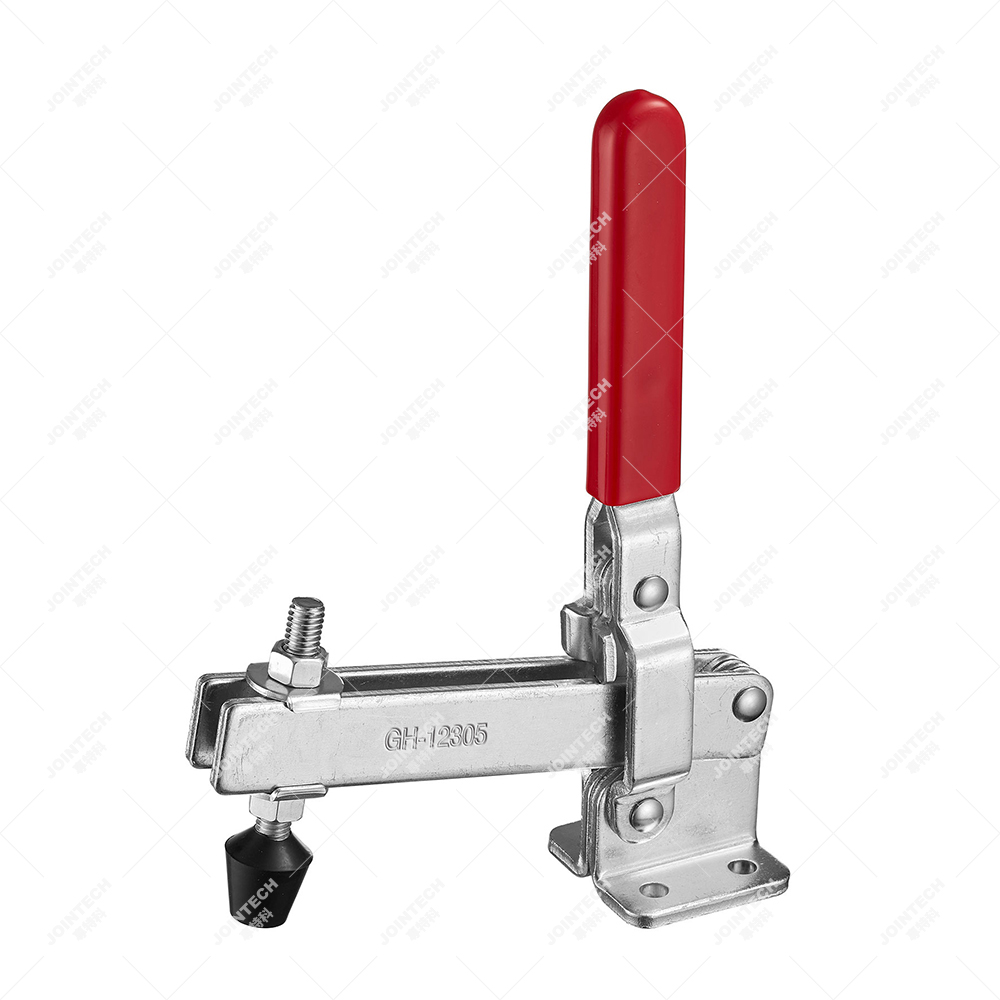

Package Included: 1 piece GH-12305 Vertical quick release toggle clamp
Holding Capacity: 700Lbs, solid grip; Complete with adjustable rubber pressure tips
Material: Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance. A rock-solid grip to install on jigs, tool fixtures, or movable bases.
Easy loading and unloading
The complexity of the Vertical Toggle Clamp for improving production efficiency should be adapted to the production capacity.
Weight: 990g
Holding Capacity: 364kg
Bar Opens: 100°
Handle Opens: 65°
Spindle Supply: GH-FC-38312
Package Included: 1 piece GH-12305 Vertical quick release toggle clamp
Holding Capacity: 700Lbs, solid grip; Complete with adjustable rubber pressure tips
Material: Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance. A rock-solid grip to install on jigs, tool fixtures, or movable bases.
Easy loading and unloading
The complexity of the Vertical Toggle Clamp for improving production efficiency should be adapted to the production capacity.
