Zinc Plate Coating Vertical Toggle Clamp Use on CNC Machinery

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

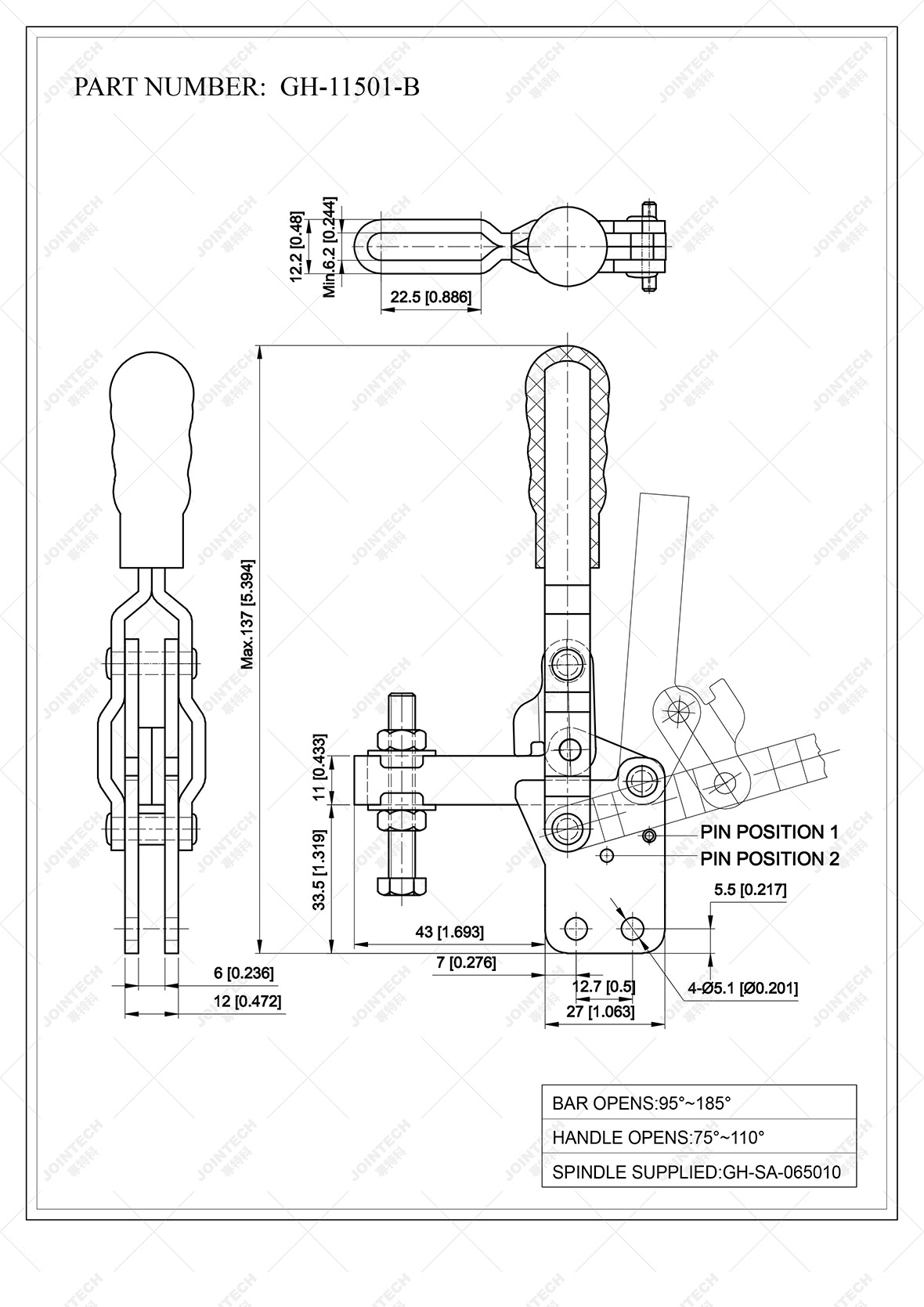

  • GH-11501-B

  • Jointech

  • 7326909000

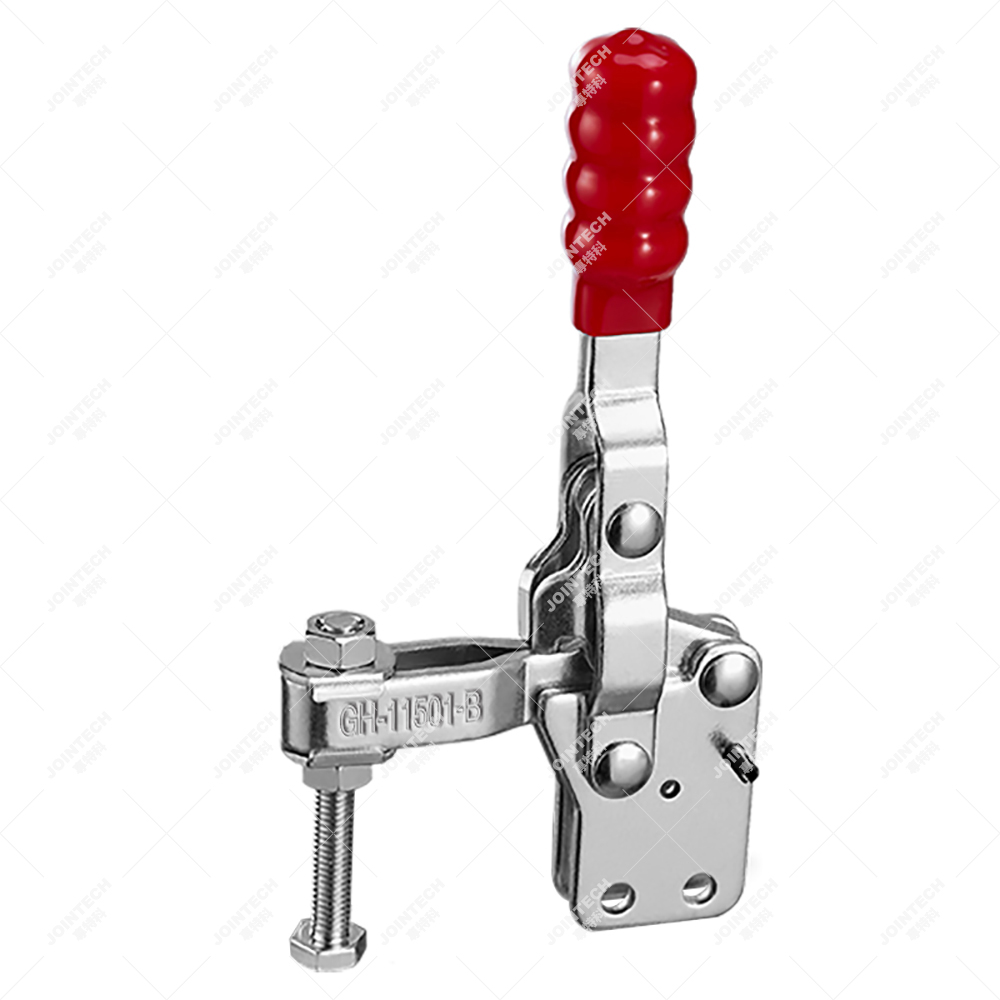

Vertical Toggle ClampVertical Toggle Clamp

Weight: 150g

Holding Capacity: 230kg

Bar Opens: 95-185°

Handle Opens: 75-110°

Spindle Supplied: GH-SA-065010

Its already superb construction is enhanced with a zinc plated coating for corrosion resistance and optimized durability. Common Uses in Table Saw Jigs and Fixtures Smoker Grills.

Vertical Quick-Release Toggle Clamp is a must-have addition to your jig assembly. With its sturdy construction and efficient design, this essential tool ensures that you achieve a rock-solid grip on your work piece; providing a hold that won't slip. The grip with a minimum 90-degree angle for easy loading and unloading.

The basic method and steps of Vertical Toggle Clamp design

Preparation before the design of Vertical Toggle Clamp.

First, design notices finished parts drawings, rough drawings, and process routes and other technical data.
