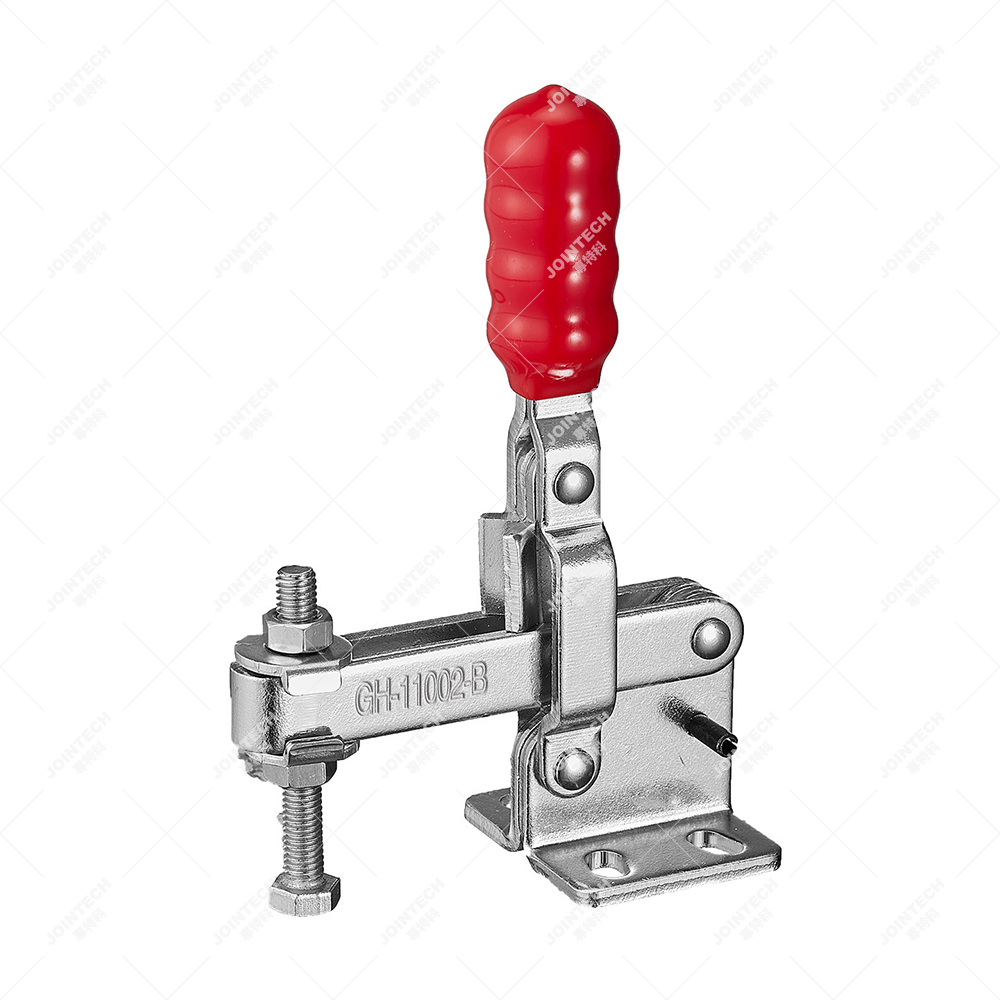

U-bar Clamping Flange Base Quick Release Vertical Jig Clamp

Availability:
Quantity:

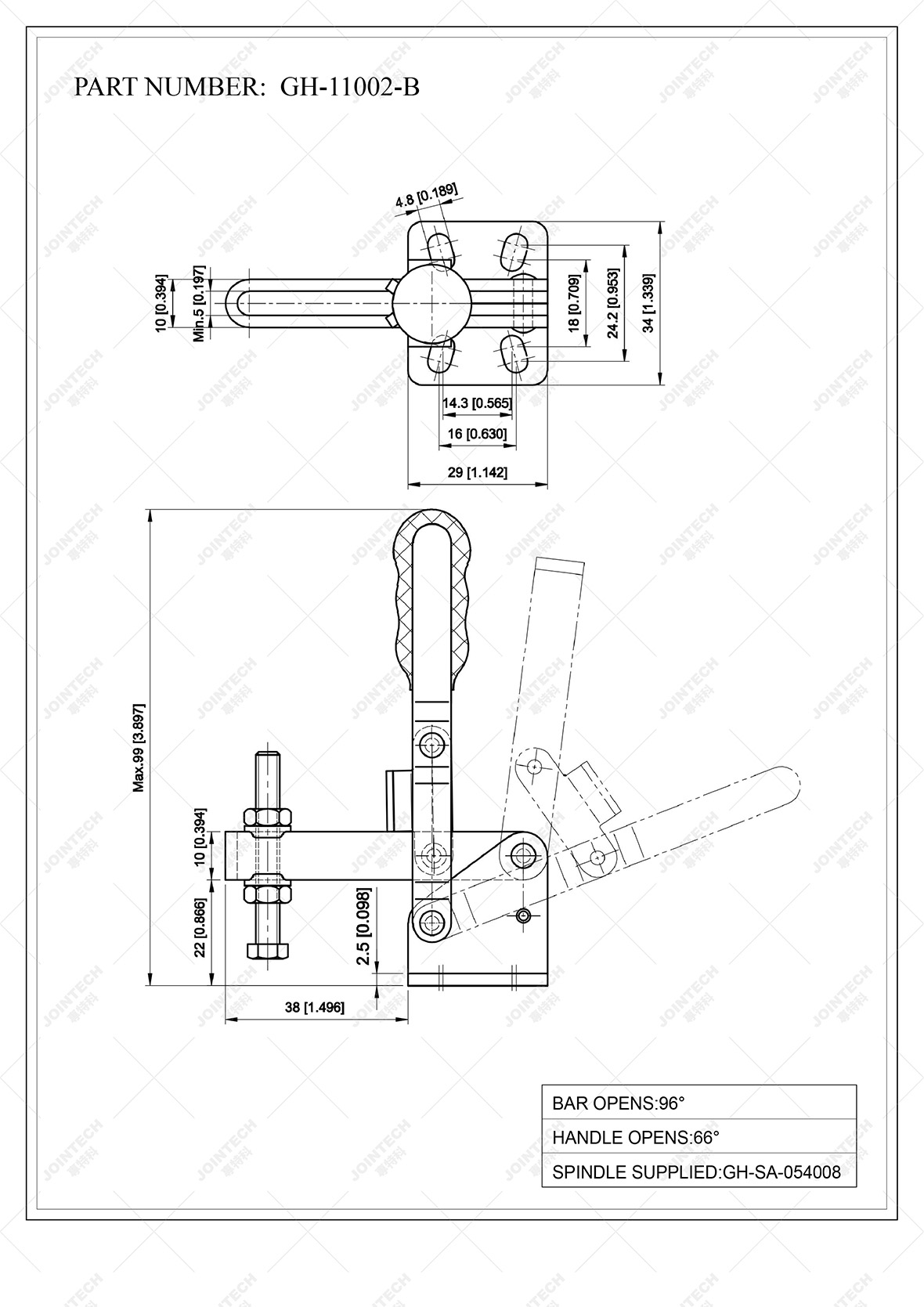

  • GH-11002-B
  • Jointech
  • 8205700000

Vertical Toggle ClampVertical Toggle Clamp

Weight: 128g

Holding Capacity: 75kg

Bar Opens: 96°

Handle Opens: 69°

Spindle Supplied: GH-SA-054008

Introducing the Quick Release Vertical Toggle Clamp by Jointech. This small duty clamp is an absolute must for any jig assembly, tool fixture or movable base.

The use of special fixtures will modification the aim of the first machine and expand the scope of use of the machine, achieving multiple functions in one machine.
