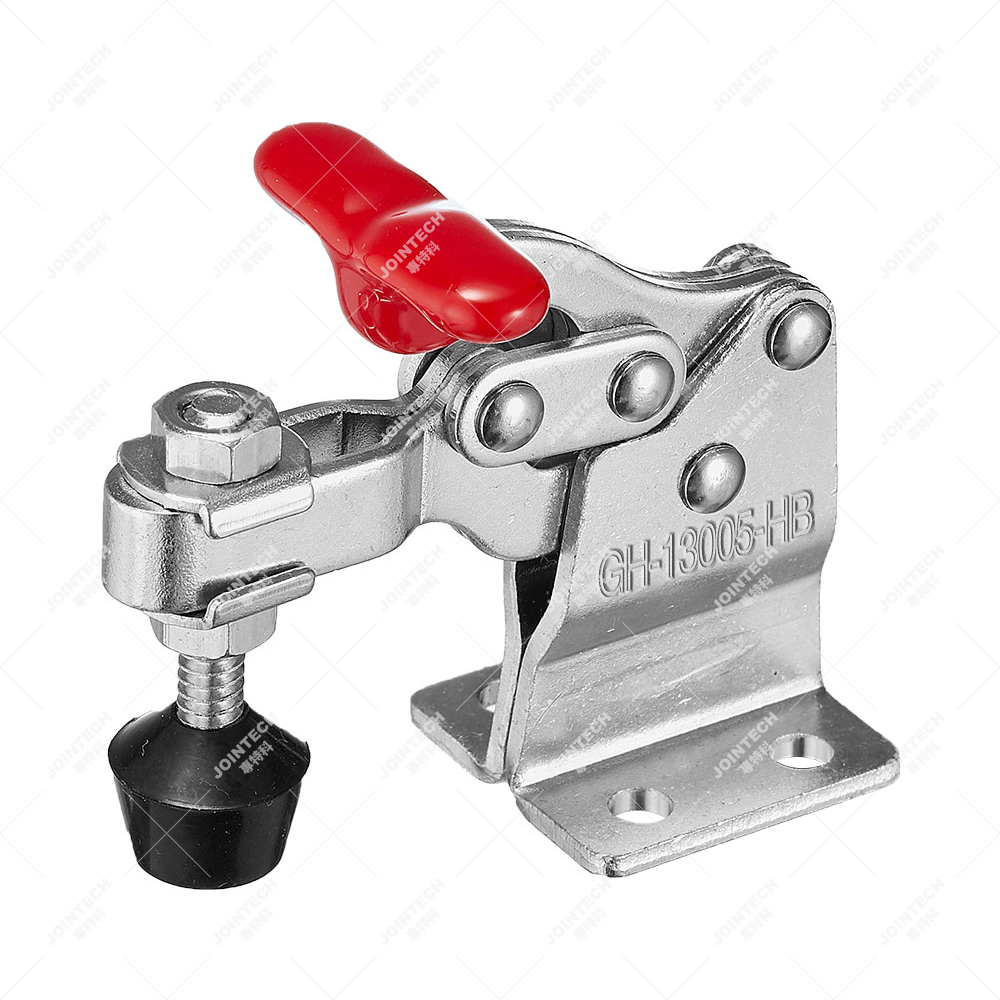

Stainless Steel High Base Manual Vertical Toggle Clamp

Availability:
Quantity:
  • GH-13005-HB
  • Jointech
  • 8205700000

Vertical Toggle ClampVertical Toggle Clamp

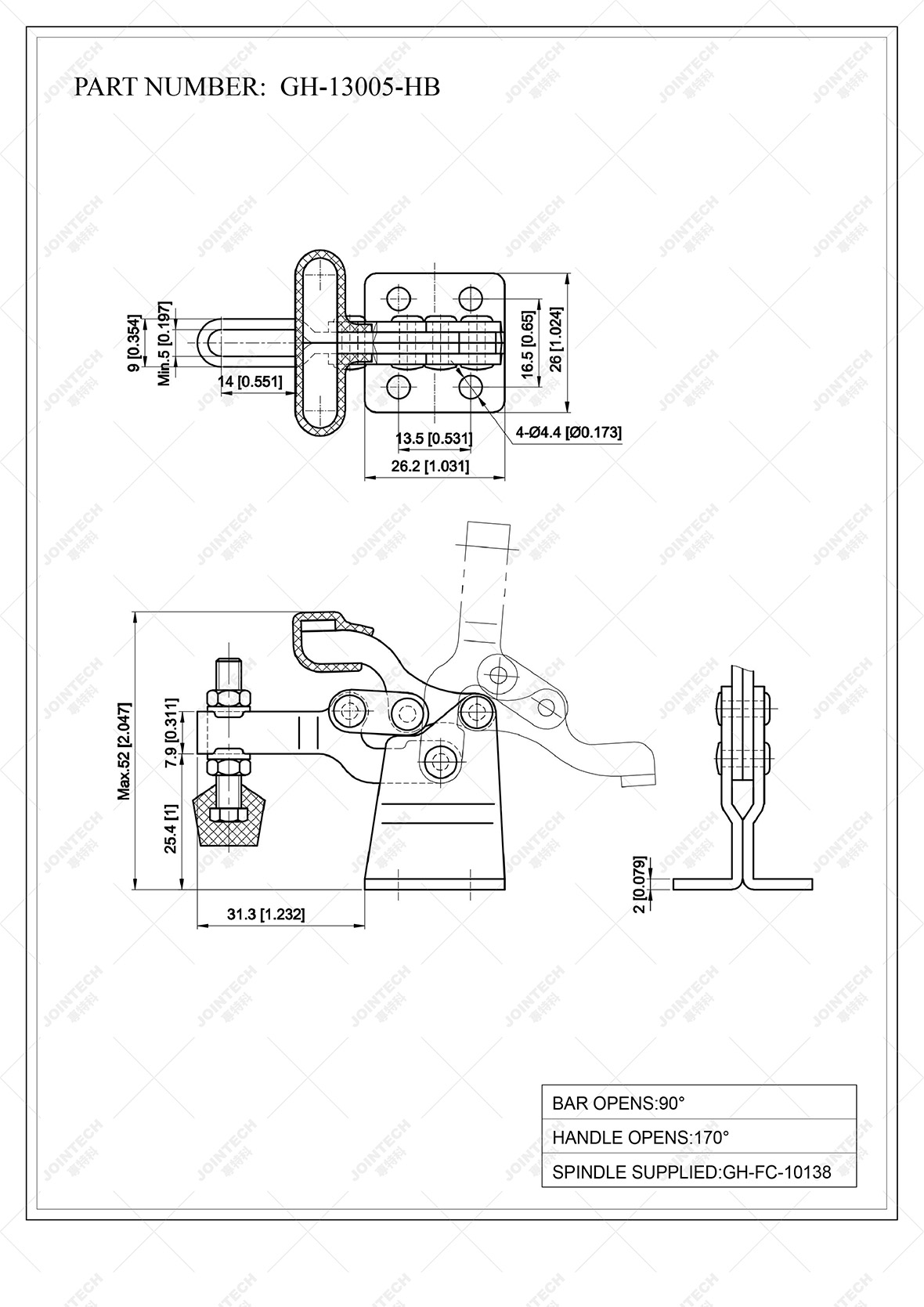

Weight: 68g

Holding Capacity: 68kg

Bar Opens: 90°

Handle Opens: 170°

Spindle Supplier: GH-FC-10138

Introducing the Quick Release Vertical Toggle Clamp by Jointech. This small duty clamp is an absolute must for any jig assembly, tool fixture or movable base.

When clamping the workpiece with the Vertical Toggle Clamp, the position accuracy of the workpiece relative to the tool and the machine tool is guaranteed by the Vertical Toggle Clamp,that isn't littered with the ability level of the staff so that the machining accuracy of a batch of workpieces tends to be consistent.
