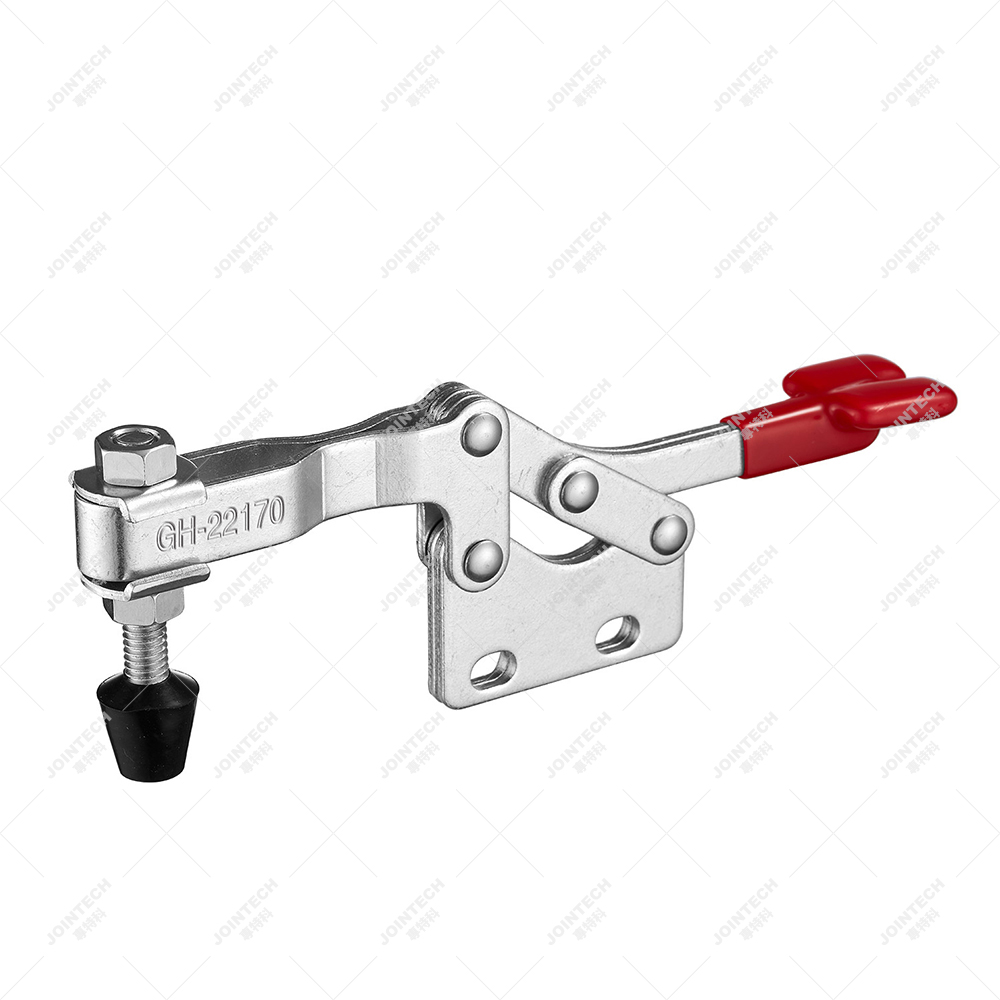

GH-22170
Jointech
8205700000
Weight: 285g
Holding Capacity: 250kg
Bar Opens: 96°
Handle Opens: 88°
Spindle Supplied: GH-FC-56212
Application: Rugged fixtures, mounted on fixtures, tool holders or movable bases, are ideal for fast fixing of metal plates or boards for machine operations, woodworking, welding, molds and more.

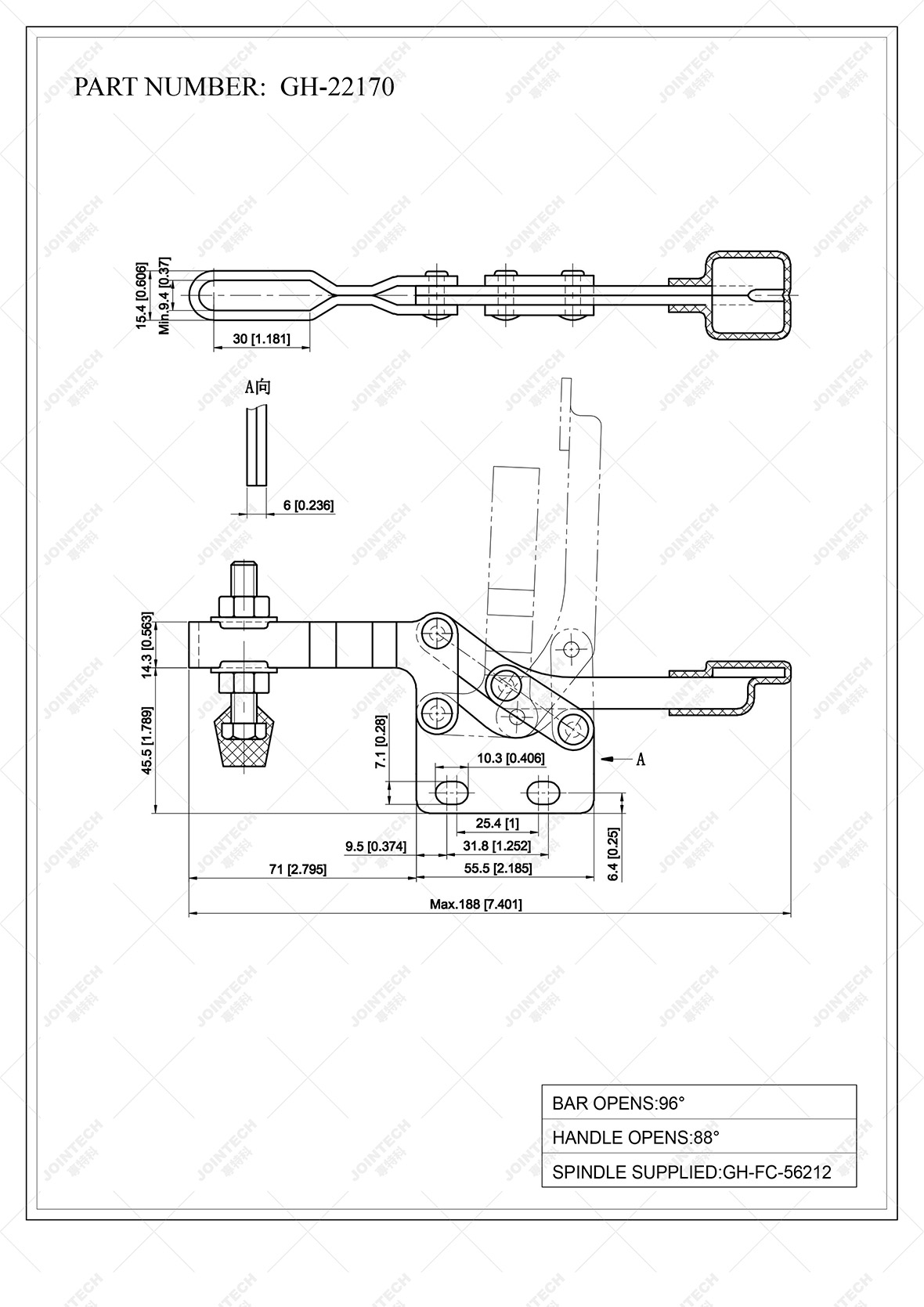

The cross-sectional view shows the internal structure, the machining allowance of the machined surface is indicated by thick solid lines or mesh lines, and the workpiece is regarded as a transparent body.
Weight: 285g
Holding Capacity: 250kg
Bar Opens: 96°
Handle Opens: 88°
Spindle Supplied: GH-FC-56212
Application: Rugged fixtures, mounted on fixtures, tool holders or movable bases, are ideal for fast fixing of metal plates or boards for machine operations, woodworking, welding, molds and more.
The cross-sectional view shows the internal structure, the machining allowance of the machined surface is indicated by thick solid lines or mesh lines, and the workpiece is regarded as a transparent body.
