Quick Release Vertical Toggle Clamp Use For Testing Moulds

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • GH-12295

  • Jointech

  • 8205700000

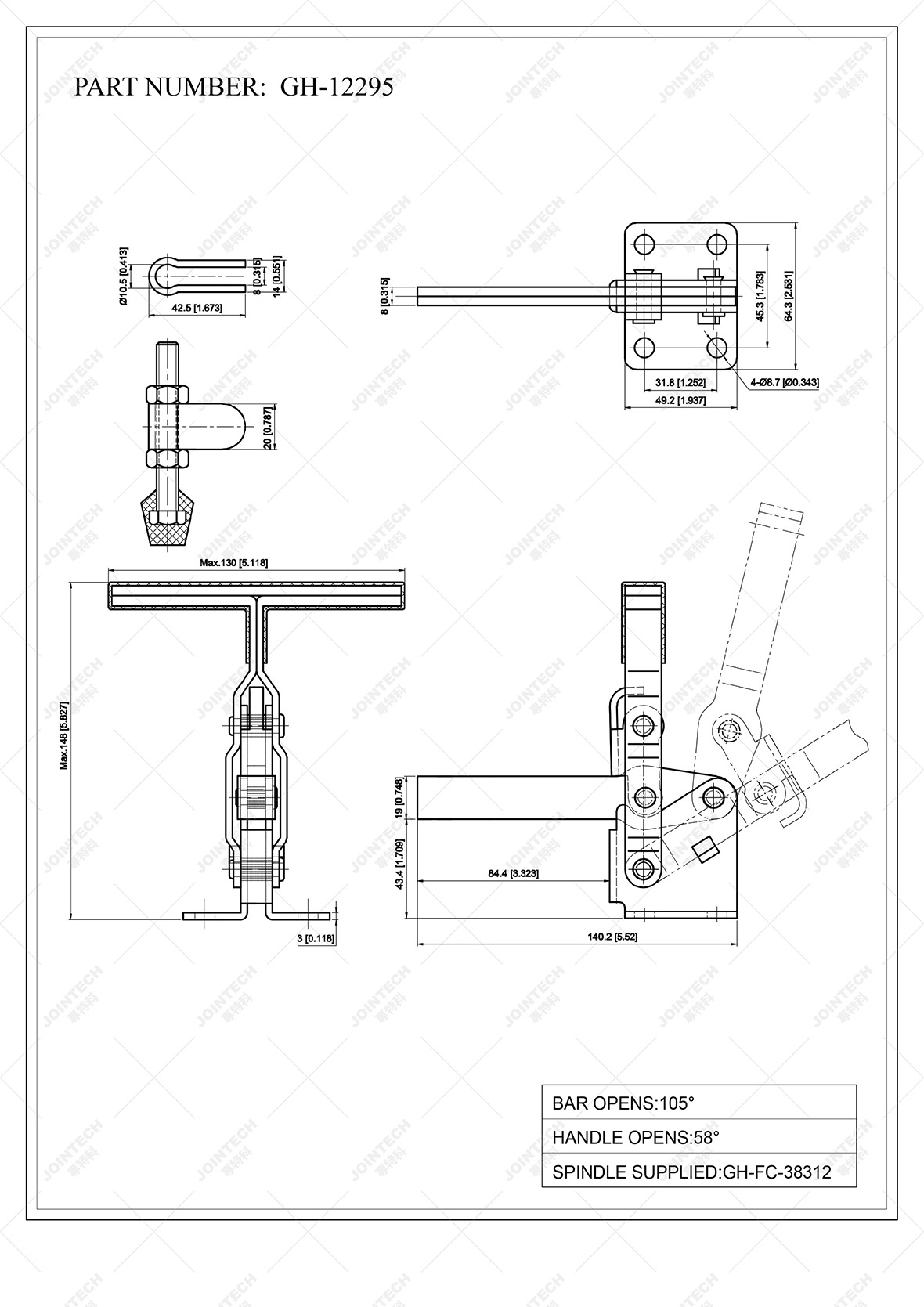

Vertical Toggle ClampVertical Toggle Clamp

Weight: 710g

Holding Capacity: 340kg

Bar Opens: 105°

Handle Opens: 58°

Spindle Supply: GH-FC-38312

  • Package Included: 1 piece GH-12295 Vertical quick release toggle clamp

  • Holding Capacity: 700Lbs, solid grip; Complete with adjustable rubber pressure tips

  • Material: Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance. A rock-solid grip to install on jigs, tool fixtures, or movable bases.

  • Easy loading and unloading

The impact on machining accuracy ensures that the Vertical Toggle Clamp can meet the machining accuracy requirements of the workpiece.
