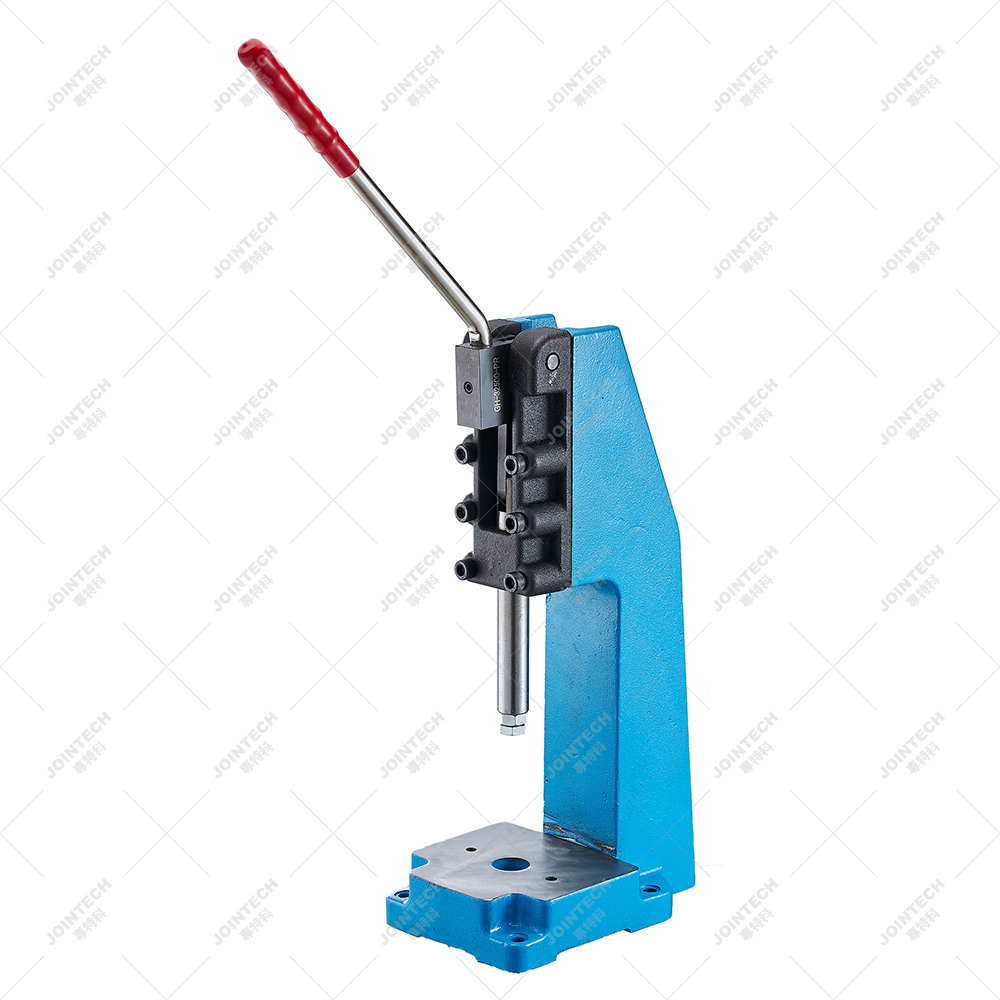

GH-32500PR
Jointech
8205700000
Weight: 17920g
Holding Capacity: 2500kg
Plunger Stroke: 75mm
Handle Opens: 185°
Spindle Supplied: GH-SA-127517
An essential woodworking hand tool addition to your jig assembly, delivering dependable and secure straight line hold down clamp action for your work pieces, jigs and fixtures.
Drilling the holes
After marking the holes, drill them as accurately as possible to avoid potential problems in the future. Make sure the holes are the right size for the bolt before using a drill. It doesn't matter how much time you spend on drilling the holes, the most important thing is that you get it the right first time.
Attaching the elbow joint clamp
After drilling the hole, place the push pull toggle clamp in place. Simply align the bolt holes with the holes in the work surface. Your work does not stop there. Next, insert four bold bodies in each hole. Finally, place the nuts on the ends and tighten until the elbow joints are secured to hold the bolts in place.
