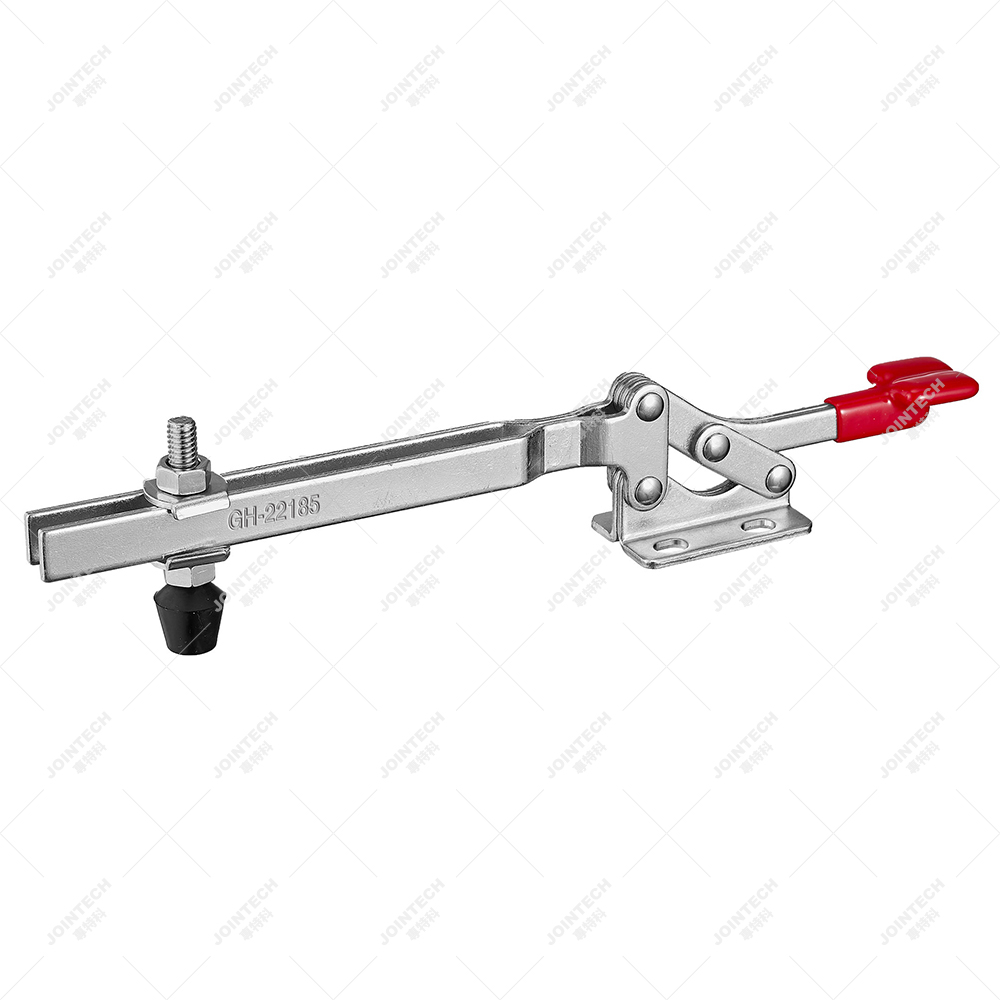

Long Open U-bar Spindle Adjustable Horizontal Toggle Clamp

Availability:
Quantity:

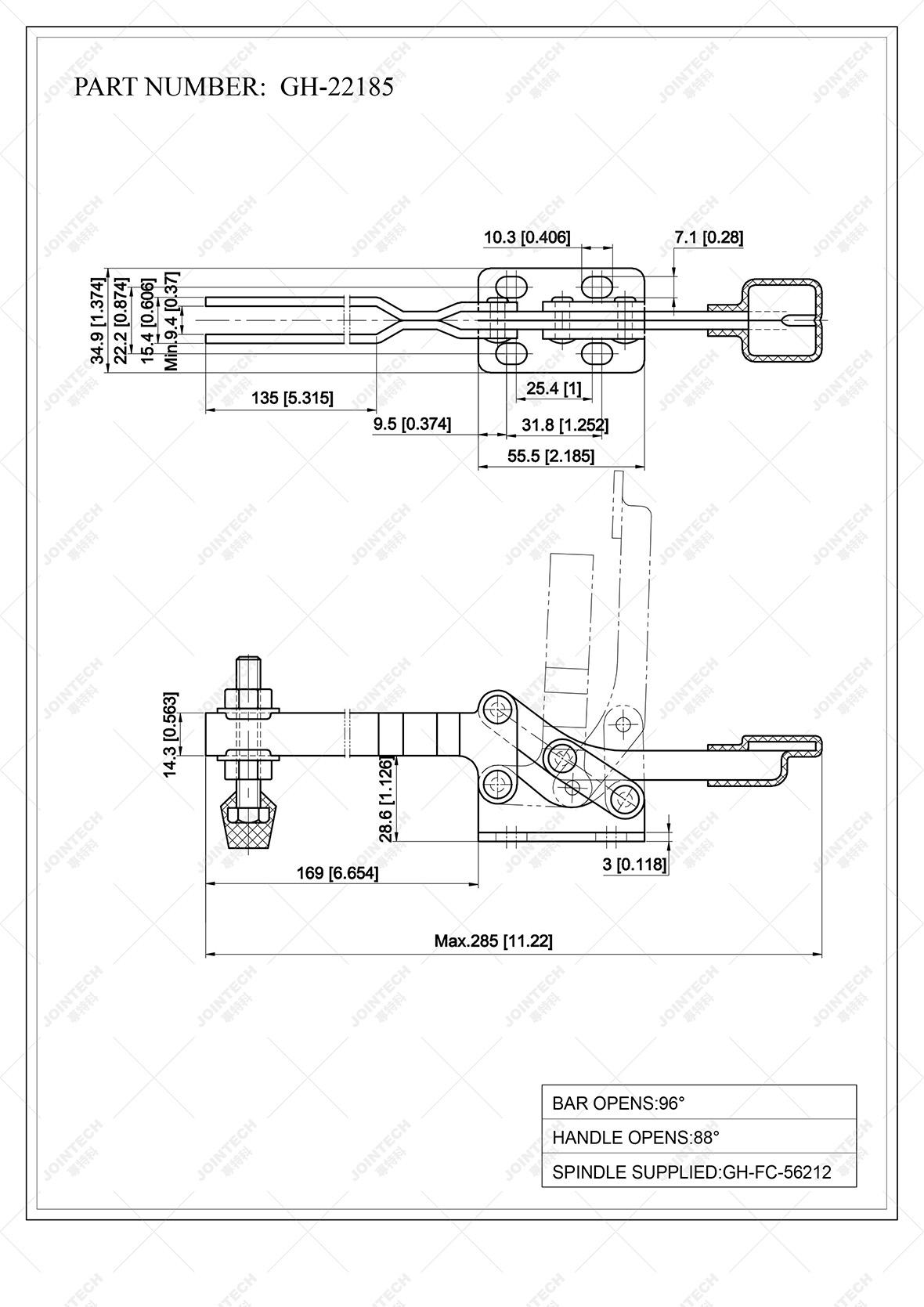

  • GH-22185
  • Jointech
  • 8205700000

Horizontal Toggle ClampHorizontal Toggle Clamp

Weight: 360g

Holding Capacity: 250kg

Bar Opens: 96°

Handle Opens: 88°

Spindle Supplied: GH-FC-56212

Application: Rugged fixtures, mounted on fixtures, tool holders or movable bases, are ideal for fast fixing of metal plates or boards for machine operations, woodworking, welding, molds and more.

According to the shape and position of the workpiece, the positioning parts, tool setting parts, guide parts, clamping mechanism, orienting parts of the fixture are presented in sequence, and finally, a horizontal toggle clamp is given to make it an organic whole fixture.
