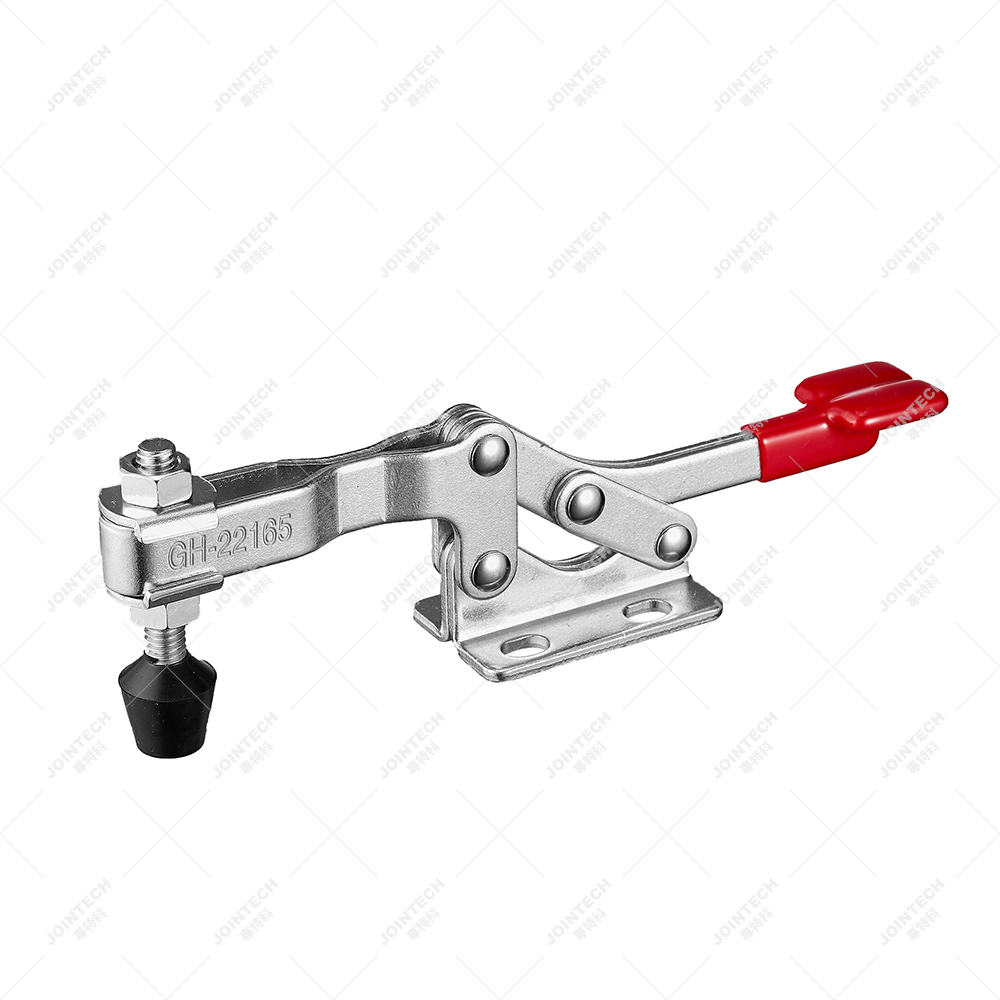

GH-22165
Jointech
8205700000
Weight: 285g
Holding Capacity: 250kg
Bar Opens: 96°
Handle Opens: 88°
Spindle Supplied: GH-FC-56212
Application: Rugged fixtures, mounted on fixtures, tool holders or movable bases, are ideal for fast fixing of metal plates or boards for machine operations, woodworking, welding, molds and more.
Use a double-dotted line to draw the outline and main surface of the horizontal toggle clamp. If necessary, use a cross-sectional view.
