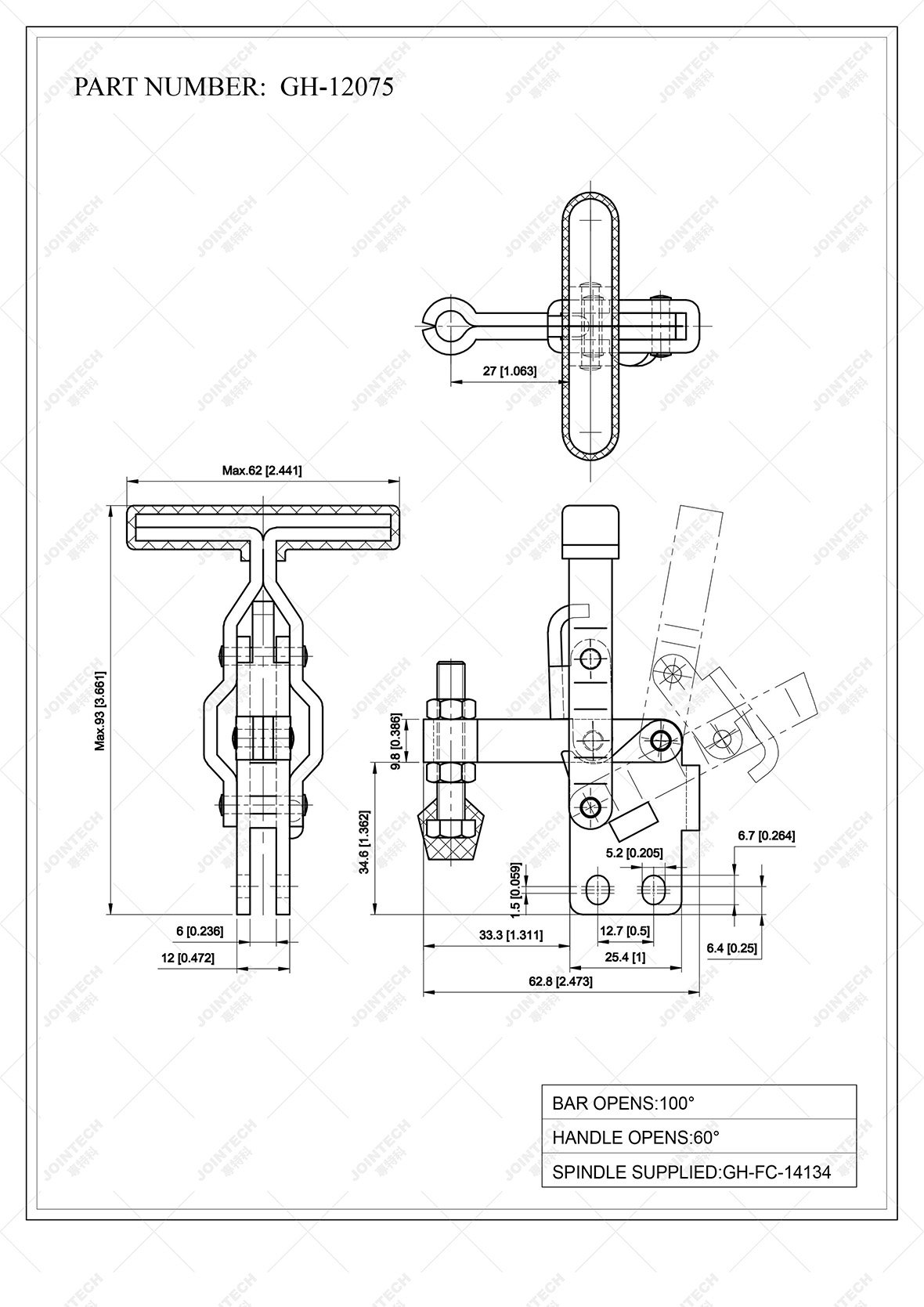

GH-12075
Jointech
8205700000
Weight: 170g
Holding Capacity: 91kg
Bar Opens: 100°
Handle Opens: 60°
Spindle Supplier: GH-FC-14134

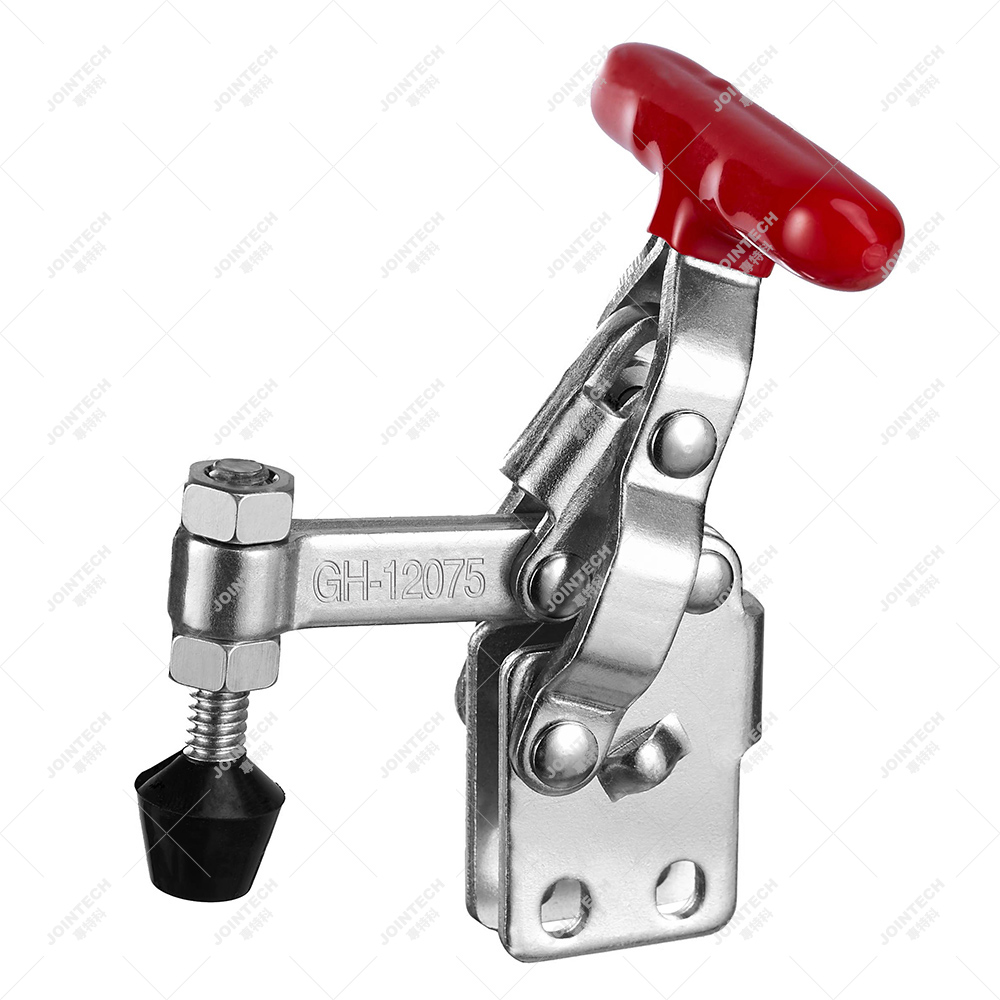

Introducing the Quick Release Vertical Toggle Clamp by Jointech. This small duty clamp is an absolute must for any jig assembly, tool fixture or movable base.
Vertical Toggle Clamp not only expands the process range of the machine tool but also reduces the labor intensity of the workers.
Weight: 170g
Holding Capacity: 91kg
Bar Opens: 100°
Handle Opens: 60°
Spindle Supplier: GH-FC-14134
Introducing the Quick Release Vertical Toggle Clamp by Jointech. This small duty clamp is an absolute must for any jig assembly, tool fixture or movable base.
Vertical Toggle Clamp not only expands the process range of the machine tool but also reduces the labor intensity of the workers.
