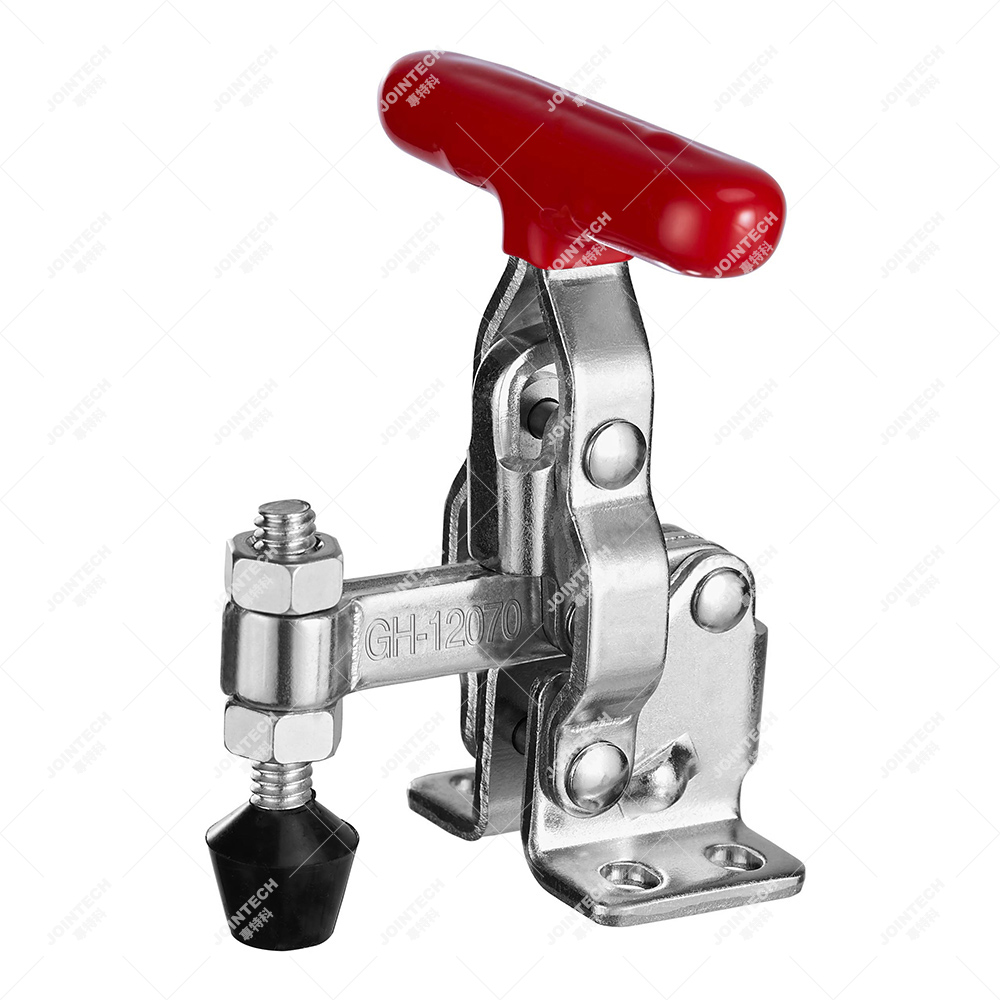

Destaco Fixed Spindle T-handle Vertical Toggle Clamp

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

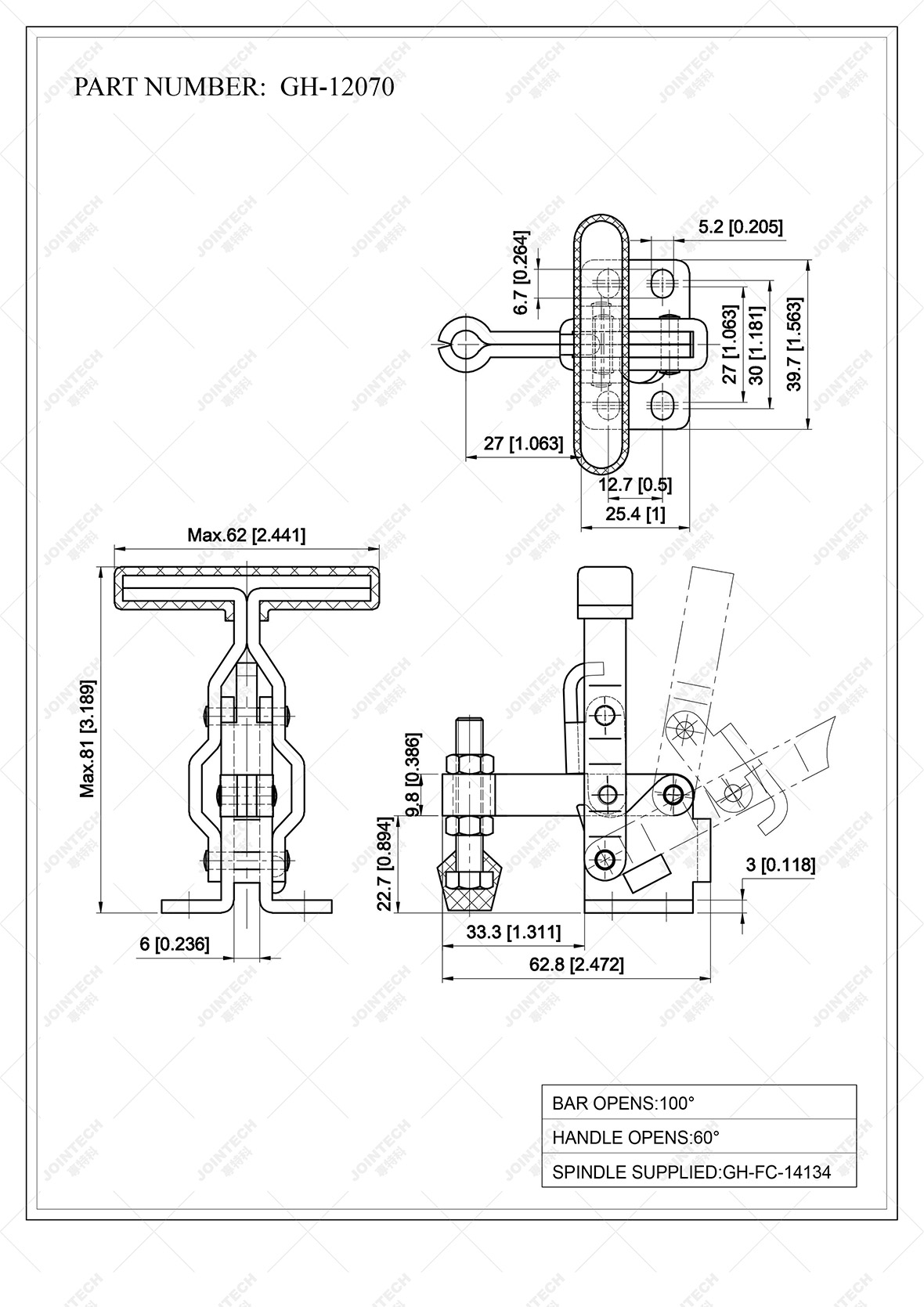

  • GH-12070

  • Jointech

  • 8205700000

Vertical Toggle ClampVertical Toggle Clamp

Weight: 170g

Holding Capacity: 91kg

Bar Opens: 100°

Handle Opens: 60°

Spindle Supplier: GH-FC-14134

Introducing the Quick Release Vertical Toggle Clamp by Jointech. This small duty clamp is an absolute must for any jig assembly, tool fixture or movable base.

These factors area unit is contributive to rising labor productivity. In addition, after adopting Vertical Toggle Clamp, the product quality is stable and the rejection rate is reduced.

Workers with lower technical levels can be arranged, which significantly reduces the production cost.
