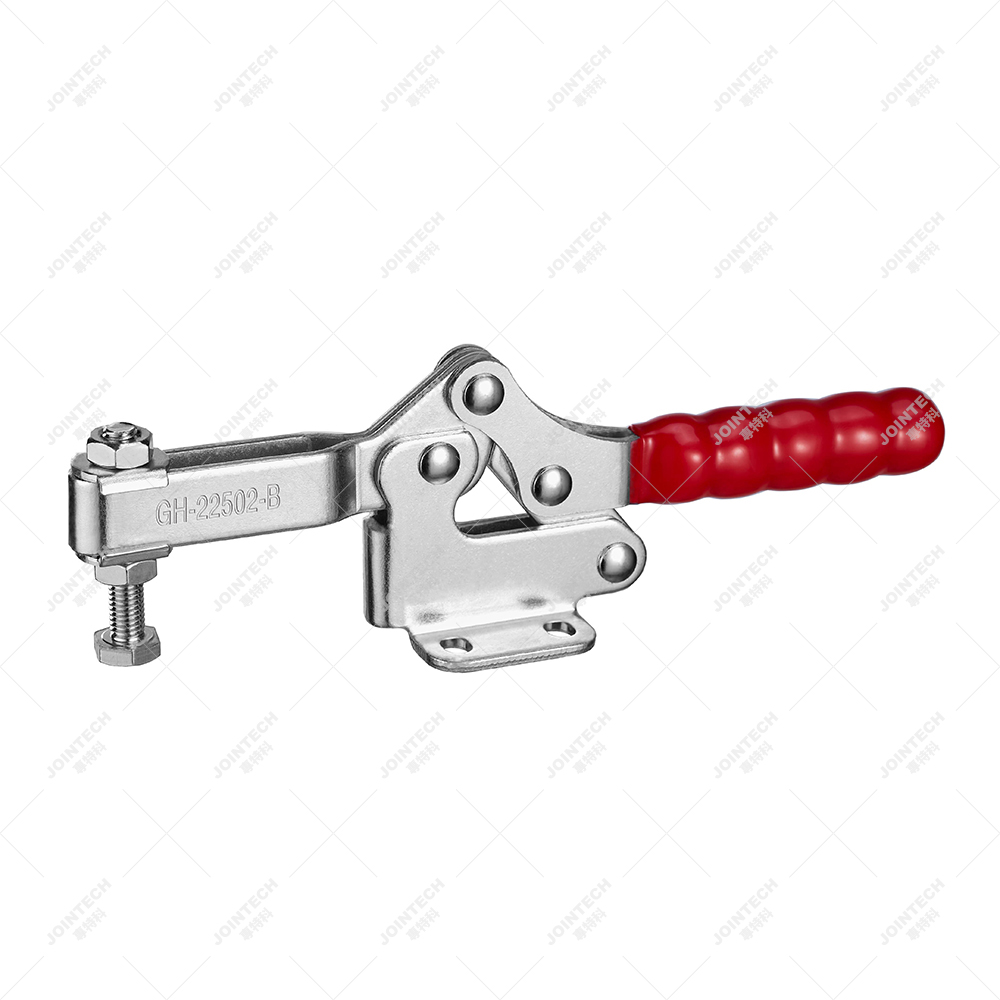

500lbs Holding Force Horizontal Toggle Clamp Use In Metal Working

Availability:
Quantity:
  • GH-22502-B
  • Jointech
  • 8205700000

Horizontal Toggle ClampHorizontal Toggle Clamp

Weight: 430g

Holding Capacity: 250kg

Bar Opens: 94°

Handle Opens: 76°

Spindle Supplied: GH-SA-085012

Application: Rugged fixtures, mounted on fixtures, tool holders or movable bases, are ideal for fast fixing of metal plates or boards for machine operations, woodworking, welding, molds and more.

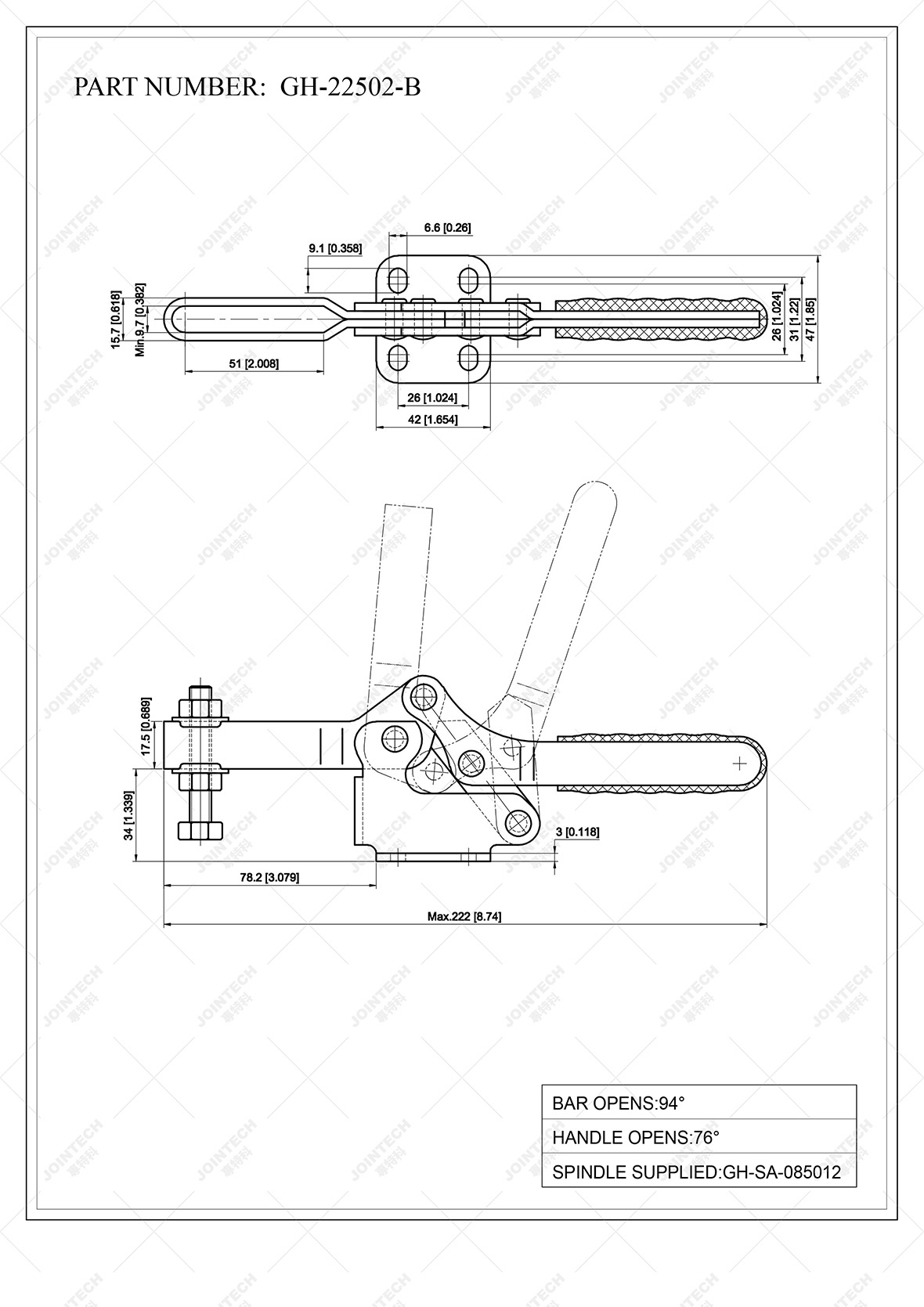

Mark the dimensions on the general drawing of the fixture

The dimensions that should be marked on the general drawing are the outline dimensions of the horizontal toggle clamp (including the dimensions of the movement limit position of the machine).
