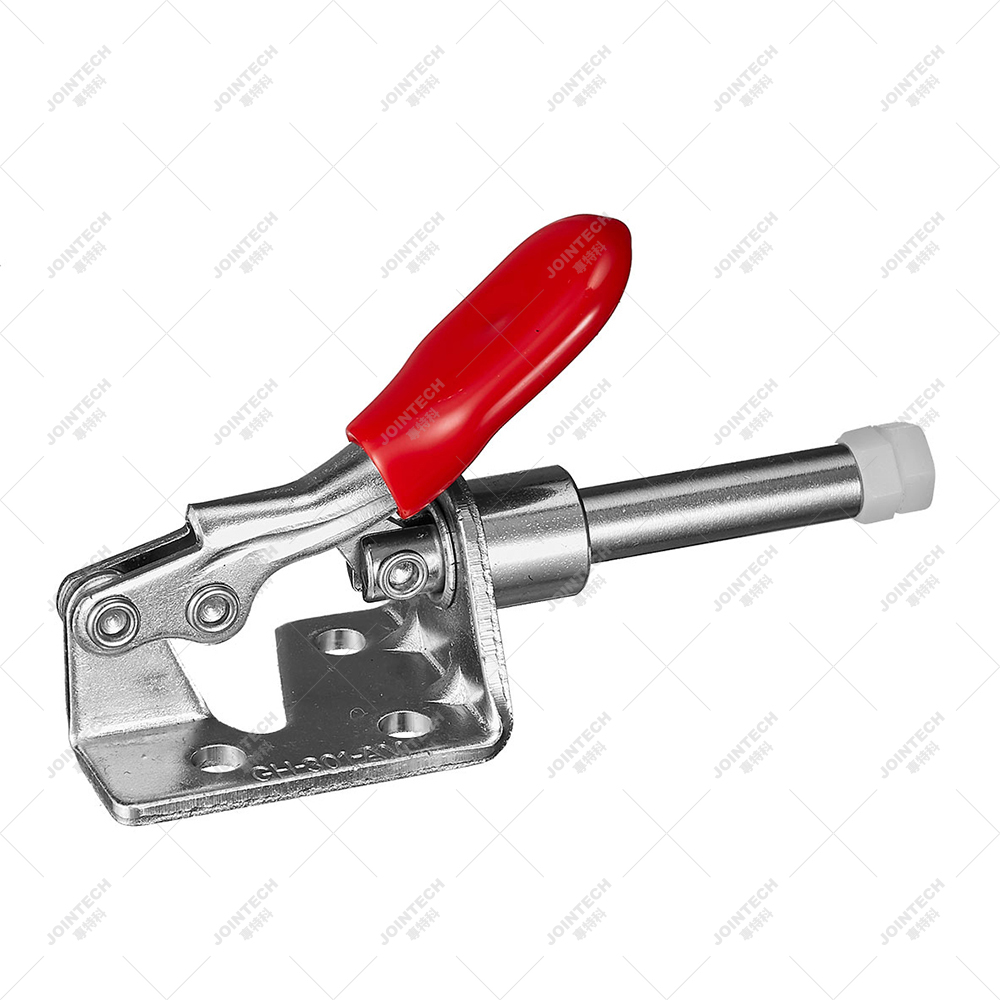

What is the material of push pull toggle clamps?

Push pull toggle clamps are a type of quick clamp. When selecting a push pull toggle clamp, factors such as the size and shape of the part, the consistency of the part thickness, the required clamping capacity, the force applied, the strength and dexterity of the operator, the frequency of maintenance, or the environment need to be considered. But there is more than this to consider. Thanks to different types, manufacturers, and models, push pull toggle clamps can be made from a range of modern materials. In this chapter, you will find some information on the materials used to make clamps.

Here is the content list:

Switching frames: iron or steel

Jaws: steel and wood

Switching frames: iron or steel

Usually, the frame of a push pull toggle clamp is made of steel or iron. Experts say that on some models the frame can be extended to hold the jaws in place. The particular iron used by the manufacturer is cast iron. Unlike other forms of this material, it contains silicon, carbon, and manganese.

Casting means that the iron has been heated until it becomes a liquid consistency. It is then poured into a mold and left for several hours to become solid again. This material is very durable. Although some types of iron can be brittle, the ductility of these tools is sufficient to prevent cracking problems and other issues.

As the frame of the jig push pull toggle clamps is expected to be used frequently, the manufacturer has incorporated cast iron into the production of the elbow joint. It is specifically tailored to safeguard your daily use. On top of that, it can withstand heavy workloads. No matter how complex your project is, your cast iron frame can be adjusted.

On the other hand, the steel in the frame is forged. This is a process in which the metal is shaped by compressive forces. As with cast iron, forged steel frames give you an advantage. From strength to quality, everything is possible. It can even hold heavy or large workpieces.

Jaws: steel and wood

Steel is also used for the lower jaws. Although some push pull toggle clamps use special materials, the most common material is steel. As with the frame, the steel-jaw provides strong performance. It provides optimum strength even under extreme pressure.

However, there is no such thing as perfection. Steel jaws can cause potential damage to soft materials. The good news is that this problem can be avoided and the use of jaw pads is a good way to prevent scratching problems.

Another good option is to use a wooden hand screw clamp. This type of elbow joint can help complete your woodworking project without damaging your material. Although it is expensive, it has its justifications. This is because this material is very high quality.
