What are the components of a push pull toggle clamp?

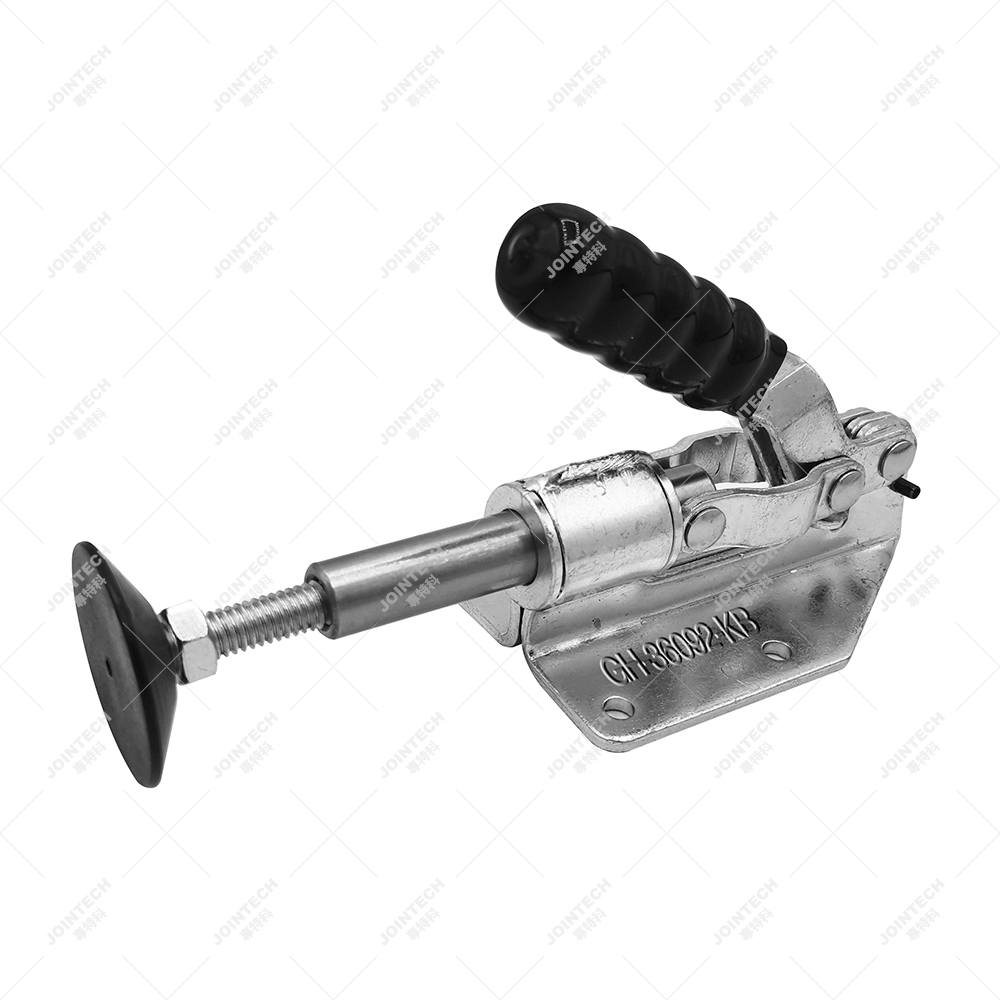

Push pull toggle clamps are a type of quick clamps which are mainly used in the manufacture of mechanical components etc. Push pull toggle clamps can meet the needs of a wide range of positioning clamps, with advantages in lateral positioning clamping, hole positioning clamping, and vertical positioning clamping. But what are the components of a push pull toggle clamp? I don't think you know much about them, so here are some of them.

Here is the content list:

Clamps

Screws

Lever

Center point

Pressure regulator

Bolt holes

Clamps

Each push pull toggle clamp has a cleat. This, together with the table, effectively holds the furniture in place. This means that the plate is pressed against the workpiece to keep it stationary during the clamping process. The clamping plates can not only be rotated but also tilted. These functions come in handy when clamping any tapered objects. The surface of the clamping plate is fitted with a protective and durable pad. It is packed in sturdy metal with plastic or rubber pads. This protects the wood from indentations and other expensive damage in the future.

Screws

The other part of the push pull toggle clamp is the screw. It attaches the plate to the body. You can move or reposition the screw along the bar to place it in its maximum position. You can also adjust it vertically to modify the amount of clamping pressure.

Lever

This controls the movement of the clamping plate. This is the pivot point that connects the two parts. The lever can be engaged with the cleat by pushing it towards the furniture or by locking it into place.

Center point

A pivot point is a locating pin near the center of the push pull toggle clamp. It provides a good connection between the bar and the lever. In addition, it can effectively hold the cleat in place.

Pressure regulator

The switch has the function of automatically adjusting the clamping pressure. This allows the clamping of various sizes of workpieces to adjust the pressure itself. This pressure applied to the furniture is consistent, whether you are holding a large piece of wood or a thin sheet of paper, and whenever you want to adjust the pressure, you simply tighten or loosen the screw.

Bolt holes

The final important part of the push pull toggle clamp is its bolt holes. You can place them at any time of the day to hold the cleat in place.

The push pull toggle clamp has many parts, including the bottom hole, pressure regulator, pivot point, lever, screws, and cleat. Remembering each one is difficult. You don't need to do this, a little knowledge of them is enough to make you an effective and responsible user. join tech Industrial Co., Ltd is a research, development, manufacturing, and sales company. Through 20 years of accumulation and innovation, our factory has become a new type of company with strong technical capabilities and standard management.
