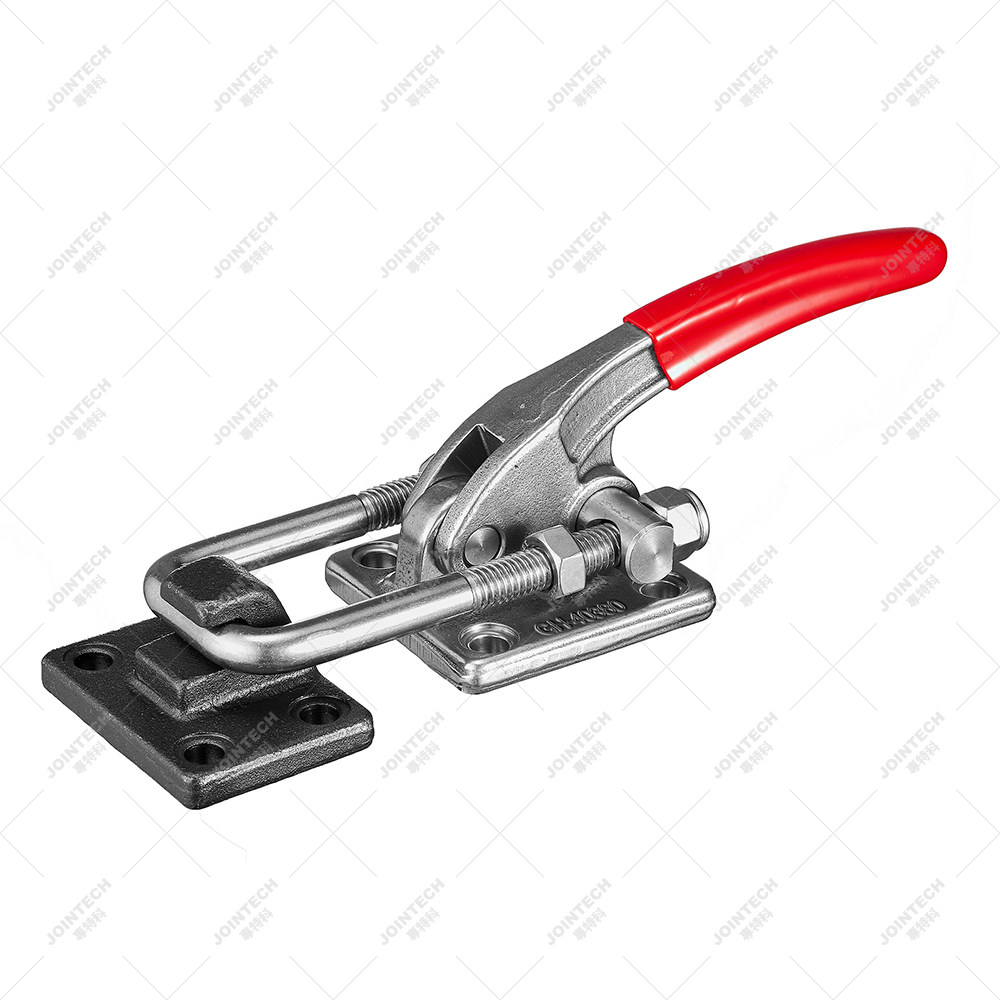

What are the common problems with latch action toggle clamps?

Latch action toggle clamps are a category of quick clamps. You will no doubt have many questions about this product, so here are some frequently asked questions and answers about latch action toggle clamps.

Here is the content list:

l What is the capacity of a latch action toggle clamp?

l What is a protective jaw pad?

l What is a linear action?

l What is a squeeze action?

l What is the clamping force?

l What does the applied force mean?

l Are there additional features for the latch action toggle clamps?

What is the capacity of a latch action toggle clamp?

When looking for a latch action toggle clamp, it's a fantastic idea to consider its capacity. This gives you an idea of the right size of workpiece to hold in the jaws. You can determine the capacity by considering the jaw opening and the depth of the throat.

What is a protective jaw pad?

Typically, clamping jaws are made of steel, iron, and other metals. Thanks to the addition of these modern materials, these tools can be indented on the surface of a piece of wood. But don't worry anymore! There are jaw pads to prevent this problem from occurring. The jaw pad is called a plastic cover and you can place the jaw pad on your jaw. This is the best solution to prevent the latch action toggle clamps from damaging the surface of the workpiece. You can buy the pads in sets so that you can use them on different clamps at the same time.

What is a linear action?

Unlike other actions, a linear action means that the latch action toggle clamps apply a force parallel to the mounting surface of the clamp. Typically, they are used to pull all the elements together and push a piece of wood against a solid block. Linear action clamps are also available in hook, latch, threaded rod, push, retract, and other styles.

What is a squeeze action?

A squeeze-action means that the latch action toggle clamps apply force to different parts between the upper and lower jaws. You can use them to pinch pieces of wood together and hold them to a surface.

What is the clamping force?

The force is not as complicated as you might think. It is quite easy to understand. It is the amount of force that is applied to a piece of wood. This only occurs when you close and lock the switch. Usually, the maximum clamping force is about 80% of the total clamping force of the clamp.

What does the applied force mean?

This is the force that is applied to the elbow joint handle to create sufficient clamping force. Its exact amount is difficult to calculate. There are many variables involved. These include the type of fixture, the material, the fixture position, and the spindle position. All of these factors have a significant effect on the force applied.

Are there additional features for the latch action toggle clamps?

Definitely yes. You should take advantage of the other features. From elbow clamps with locks to elbow clamps with springs to elbow clamps with sensors, there are other options to choose from.

Jointech Industrial Co., Ltd recommends that you learn about the Latch action toggle clamp before you buy it.
