The basic method and steps of Vertical Toggle Clamp design

Views: 0     Author: Site Editor     Publish Time: 2022-05-20      Origin: Site

The basic method and steps of Vertical Toggle Clamp design

Each set of Vertical Toggle Clamp has to undergo countless clamping and unclamping actions, so it may be able to meet the user's requirements at the beginning, but the addition should have its accuracy retention, thus do not style one thing contrary to the principle. Even though you're lucky currently, there'll be no semipermanent property. A good design should be tempered over time. Next, let's take a look at the basic methods and steps of Vertical Toggle Clamp design. Here are some answers.

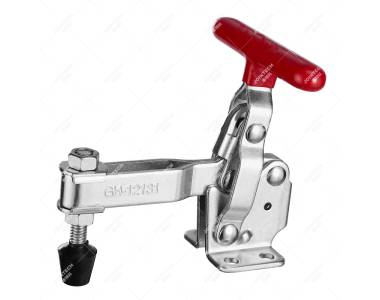

GH-12131


Here is the content list:

Preparation before the design of Vertical Toggle Clamp.

Vertical Toggle Clamp design considerations.


Preparation before the design of Vertical Toggle Clamp.

First, design notices finished parts drawings, rough drawings, and process routes and other technical data, understand the processing technical requirements of each process, positioning and clamping schemes, the processing content of the previous process, the status of the blank, the machine tool used in the processing, cutting tools, inspection measuring tools, machining allowance and cutting amount, etc. Second, understand the production volume and the demand for Vertical Toggle Clamp. Third, understand the main technical parameters, performance, specifications, accuracy of the machine tool used, and the connection size of the structure connected to the Vertical Toggle Clamp. Fourth, the inventory of standard materials for fixtures.

Vertical Toggle Clamp design considerations.

First, the design of Vertical Toggle Clamp generally has a single structure, which gives people the impression that the structure is not very complicated. Especially now that the popularity of hydraulic clamps greatly simplifies the original mechanical structure, but if the design process is not considered in detail, it will inevitably appear to be inconsistent. Second, the blank margin of the workpiece. The scale of the blank is just too giant and interference happens. Therefore, the rough drawing must be prepared before designing, leaving enough space. Third, don't ignore the overall openness of the Vertical Toggle Clamp. Ignoring the openness makes it difficult for the operator to install the card, time-consuming and laborious, and design taboos. The positioning elements are severely worn, thus fast and convenient replacement ought to be thought about. It is best not to design into larger parts.

Fourth, consider the unobstructed chip evacuation of the Vertical Toggle Clamp. Due to the limited processing space of the machine tool during the design, the Vertical Toggle Clamp is often designed to be more compact. At this time, it is often ignored that the iron filings generated during the machining process will accumulate in the dead corners of the Vertical Toggle Clamp, including the outflow of the chipping fluid. Smooth, which brings a lot of trouble to future processing. Therefore, at the start of the particular scenario, we must always take into account the issues within the process method. After all, the Vertical Toggle Clamp is based on improving efficiency and convenient operation. All in all, the accumulation of Vertical Toggle Clamp design experience is very important. Sometimes design is one thing, but it is another thing in actual application, so good design is a process of continuous accumulation and summary.
