Main points of maintaining the Vertical Toggle Clamp standard

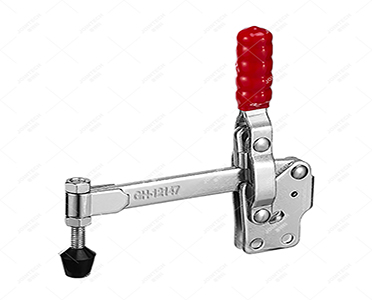

Vertical Toggle Clamp refers to a device used to fix the processed object during the mechanical manufacturing process so that it occupies the correct position for construction or inspection. Next, let's take a look at the main points of maintaining the Vertical Toggle Clamp standard. Here are some answers.


Here is the content list:

  • Locating pin and locating block

  • Indenter pressure block and limit block support block

  • Vertical Toggle Clamp parts and Vertical Toggle Clamp insulation connection parts


Locating pin and locating block

First, the positioning pins and positioning blocks of each part of the Vertical Toggle Clamp require that the positioning pins and positioning blocks must be in place. If they are missing, they must be replenished. Second, the positioning pins and positioning blocks at each location must not be excessively worn. For the positioning pin contacting the part, the contact position must be measured with a vernier caliper. When the difference between the measured size and the original design size of the positioning pin or positioning block is greater, the positioning pin or positioning block must be replaced. Third, the positioning pins or positioning blocks at each insert block, indenter on the Vertical Toggle Clamp must have good stability and no looseness, which can play an accurate and good positioning function. Fourth, there are no spatters on the positioning pins and positioning blocks, which will not cause the shunt of the welding current.

Indenter pressure block and limit block support block

The hinge shafts of the rotary indenter and pressure block must be fastened well, and the indenter and pressure block have good working stability and good lubrication. The working surface of the indenter and briquette is not excessively worn. If the wear is severe, it must be recorded and notified to the Vertical Toggle Clamp technician to adjust. After the manual indenter wrench is tightened, a certain pre-tightening force can be guaranteed, and the attached rubber head on the indenter is complete and undamaged, otherwise, it must be replaced. In addition, the limit block and support block must be well tightened. The working surface of the limit block support block is not excessively worn. If the wear is severe, it must be recorded and notified to the technician to adjust or replace.

Vertical Toggle Clamp parts and Vertical Toggle Clamp insulation connection parts

The nut on the Vertical Toggle Clamp, the clamp at the hinge shaft, and other accessories must be intact. If it is missing or damaged, it must be replaced. The bolts and screws on the Vertical Toggle Clamp must be properly disassembled and assembled. If the sliding wire or the end of the bolt is worn or damaged by collision, it must be replaced. Vertical Toggle Clamp insulation connection parts are clean, free of splashes and other debris that interfere with insulation. Vertical Toggle Clamp insulation connection parts are not damaged or missing, ensuring good insulation and no shunting.

Our official website is https://www.toggle-clamps.com/. If you are engaged in work related to Vertical Toggle Clamp or want to learn more about our company, you can communicate with us on the website. We will wholeheartedly provide users with more and better services with high-quality products, good services, and competitive prices!
