Large Holding Capacity Weldable Quick Release Steel Toggle Clamp

Availability:
Quantity:
  • GH-702-K
  • Jointech
  • 7326909000

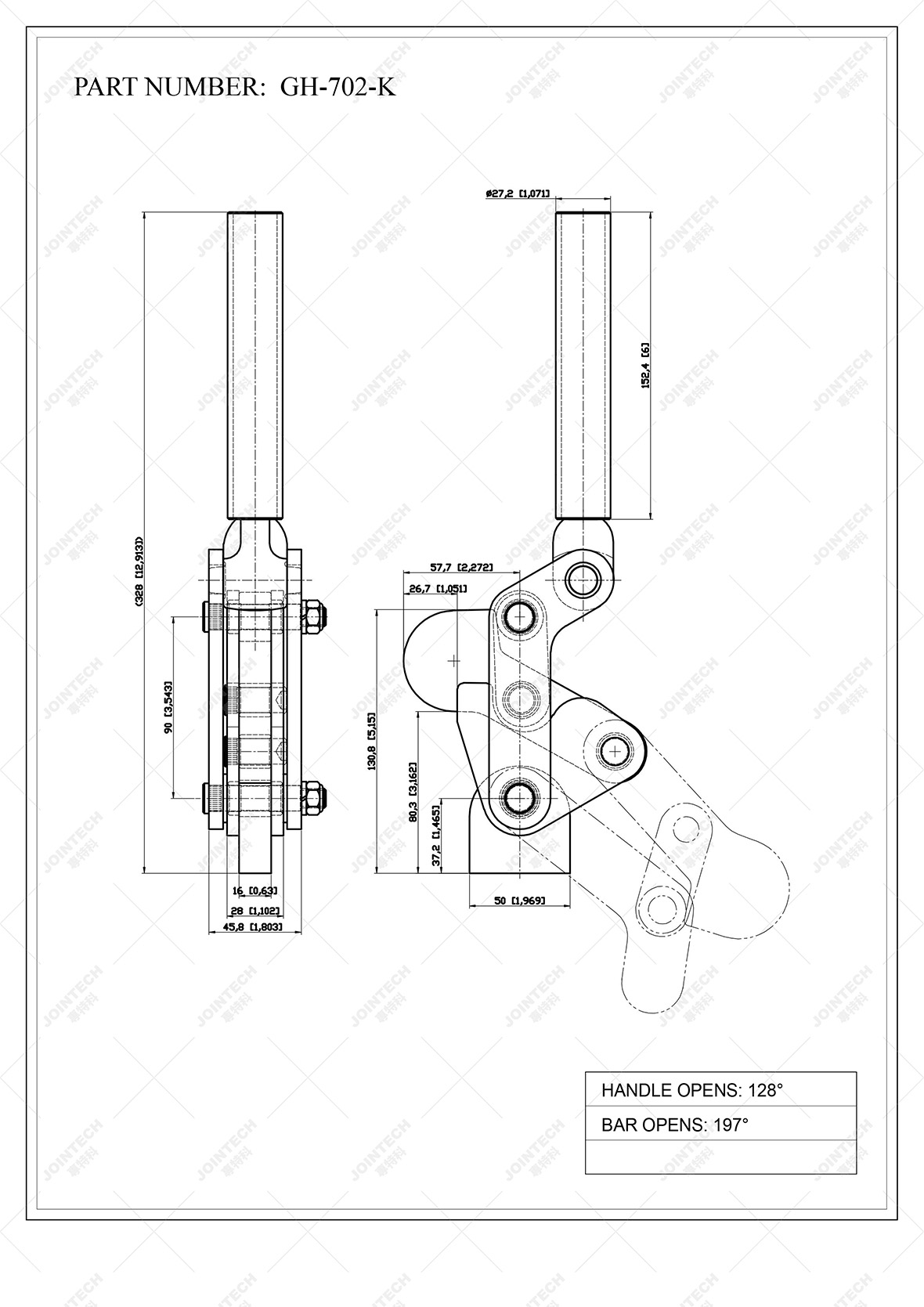

Heavy Duty Weldable Toggle ClampHeavy Duty Weldable Toggle ClampWeight: 2610g

Holding Capacity: 1000kg

Bar Opens: 197°

Handle Opens: 128°

Basic Mechanics of Toggle Clamp

To make allowance for external forces due to vibration and changing load conditions in industrial use, the proper amount of over travel of the center pivot point has been carefully calculated to yield maximum clamping pressure ,while achieving positive locking position.
