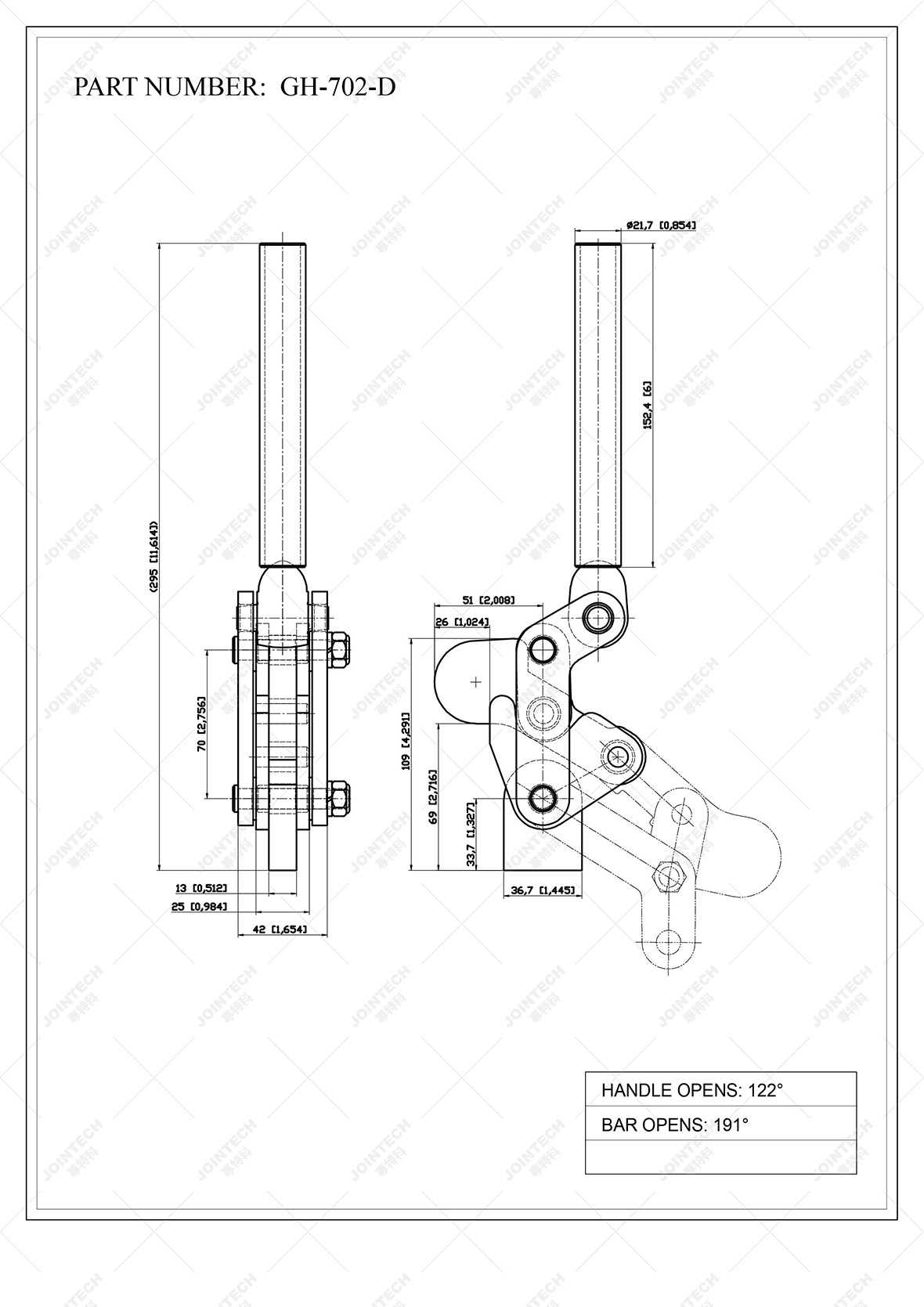

GH-702-D
Jointech
7326909000
Weight: 1470g
Holding Capacity: 500kg
Bar Opens: 191°
Handle Opens: 122°
Basic Mechanics of Toggle Clamp
A toggle clamp is a linkage that can apply a powerful clamping force. The good news is that it requires little effort to lock or even unlock. With its ease of use, it’s no wonder why many people make it a leading option. Typically, this is accomplished thru a geometric trick. This directs the force into the base. But it does not oppose the lock or unlock action. You can look at common styles that demonstrate the trick.
With this geometric trick, you will be fascinated by how a toggle performs from start to finish. This fantastic feature makes accomplishing a task easier than you imagine. While toggles have lots of designs, the operational principle is the same in most cases.
