Large Clamping Force Weldable Jig Assembly Toggle Clamp

Availability:
Quantity:
  • GH-701-D
  • Jointech
  • 7326909000

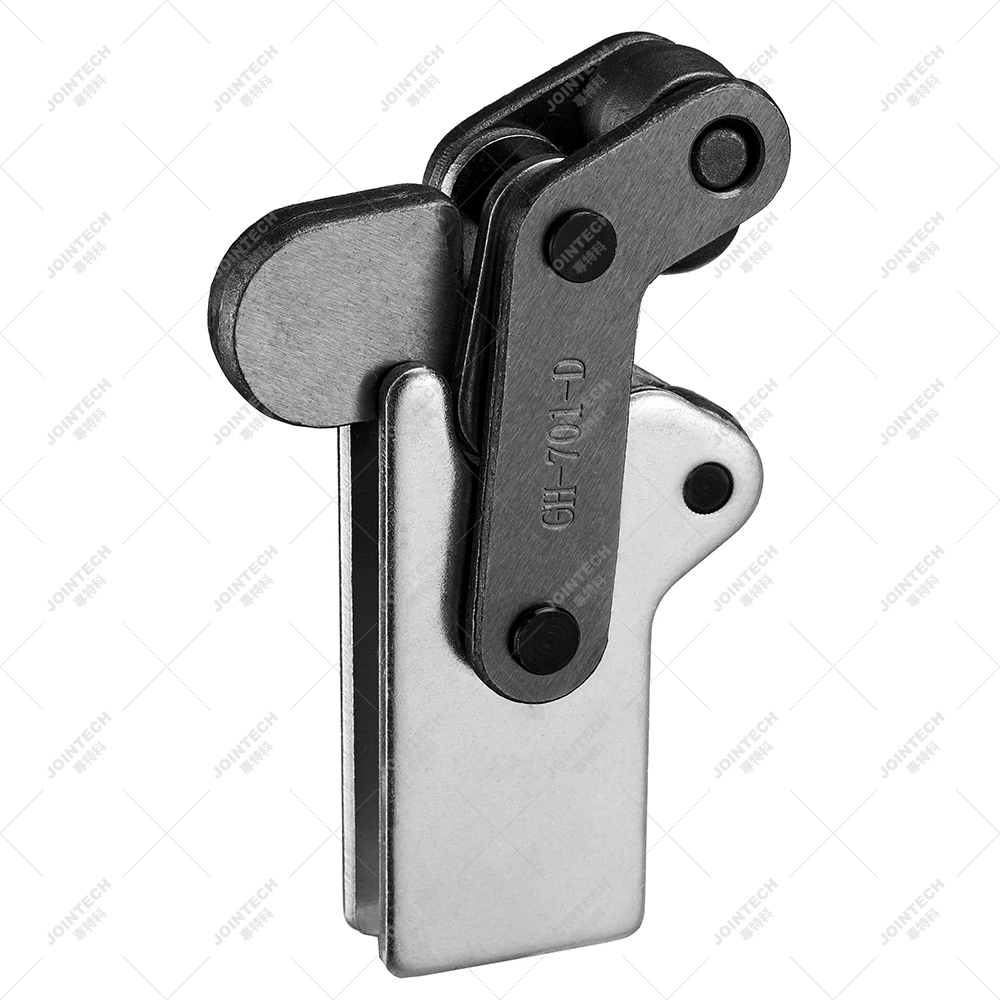

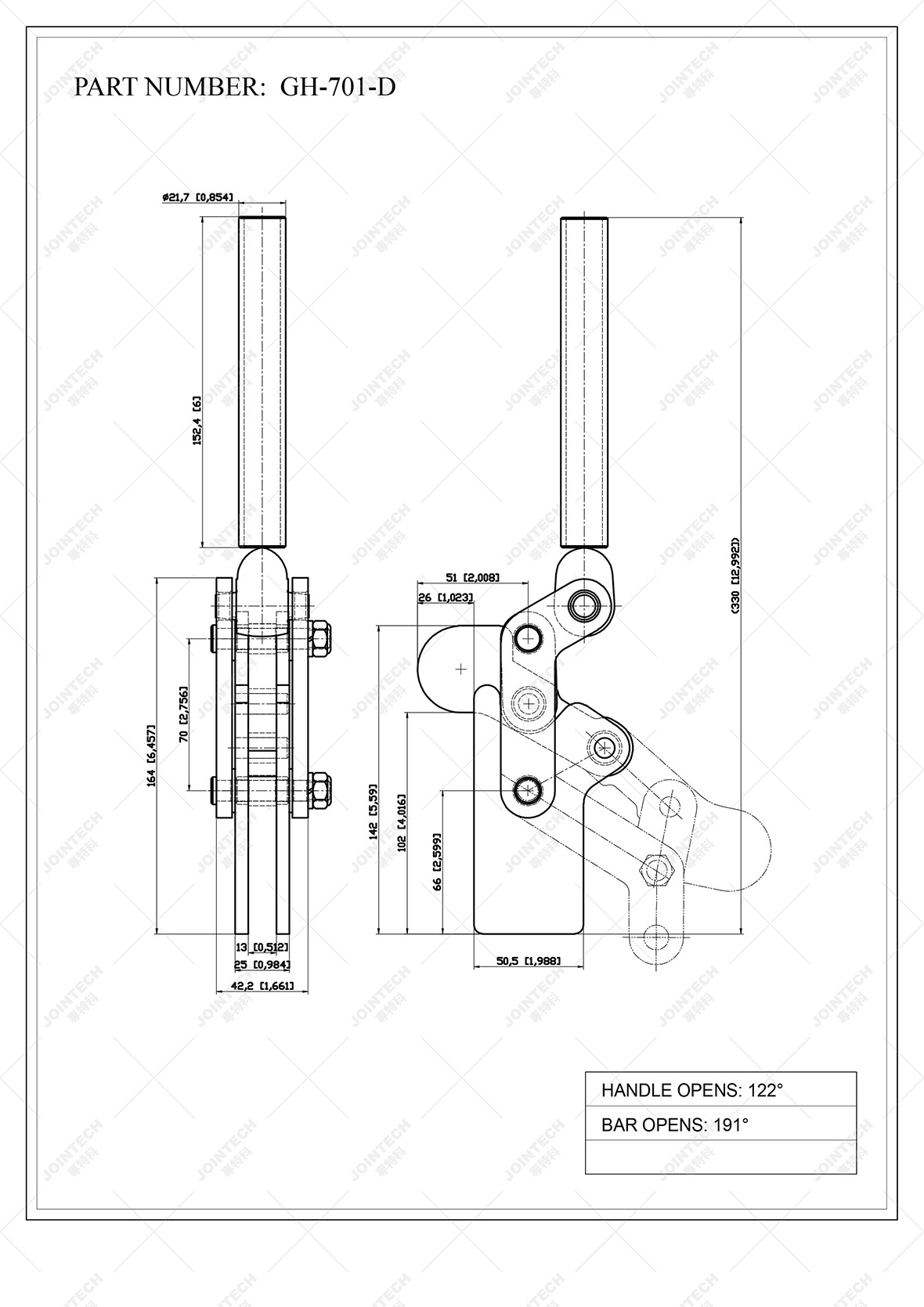

Heavy Duty Weldable Toggle ClampHeavy Duty Weldable Toggle ClampWeight: 1590g

Holding Capacity: 500kg

Bar Opens: 191°

Handle Opens: 122°

Typically, this is accomplished thru a geometric trick. This directs the force into the base. But it does not oppose the lock or unlock action. You can look at common styles that demonstrate the trick.
