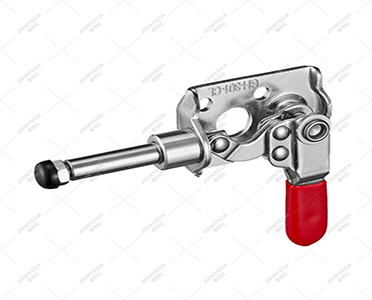

How to use the push pull toggle clamps?

Push pull toggle clamps are widely used in the manufacture of mechanical components, electronic components, and vehicles, and some light industry machinery includes some models as standard parts of their drive mechanisms. Push pull toggle clamps can meet the needs of a wide range of positioning clamps, with advantages in lateral positioning clamping, hole positioning clamping, and vertical positioning clamping. Here is how to use the push-pull toggle clips.

Here is the content list:


  • Preparation

  • Mark each hole

  • Drilling the holes

  • Attaching the elbow joint clamp

  • Using the elbow joint clamps

  • Positioning the workpiece

  • Pusher


Preparation

Before you can use the Push pull toggle clamp, you need to attach it to your workbench. The materials required are a pencil, four nuts, bolts, and a drill bit.

Mark each hole

Use a pencil to mark on the surface where you want to attach the push pull toggle clamps. Using the bolt holes as a practical guide, make sure you mark the four pilot holes, two for the side of the toggle.

Drilling the holes

After marking the holes, drill them as accurately as possible to avoid potential problems in the future. Make sure the holes are the right size for the bolt before using a drill. It doesn't matter how much time you spend on drilling the holes, the most important thing is that you get it the right first time.

Attaching the elbow joint clamp

After drilling the hole, place the push pull toggle clamp in place. Simply align the bolt holes with the holes in the work surface. Your work does not stop there. Next, insert four bold bodies in each hole. Finally, place the nuts on the ends and tighten until the elbow joints are secured to hold the bolts in place.

Using the elbow joint clamps

Once your push pull toggle clamp is securely fastened to your workbench, you can now use it to hold objects in place. During your work application, you will want to remember to maintain the Push pull toggle clamp properly to prolong its life.

Positioning the workpiece

Make sure that the toggle level is pulled up as far as possible. This allows sufficient space between the tool clamp and the work surface. Within this space, always remember to position the workpiece on the opposite side of the cleat.

Pusher

To engage the clamping plate with the workpiece, push down on the lever. After this, the push pull toggle clamps will automatically lock. This means that the workpiece will not be released until you have pulled the lever upwards.

Using a push pull toggle clamp is not as complicated as you might think. Even if you are a first-time user of the push pull toggle clamp, you will find it easy to use. If you have a problem, please feel free to contact Jointech Industrial Co., Ltd. Our experienced R&D team and professional after-sales service, as well as the excellent reputation of our products in the industry, will make your purchase worry-free. Our website is https://www.toggle-clamps.com/.
