How to maintain the horizontal toggle clamp

Views: 0     Author: Site Editor     Publish Time: 2021-10-25      Origin: Site

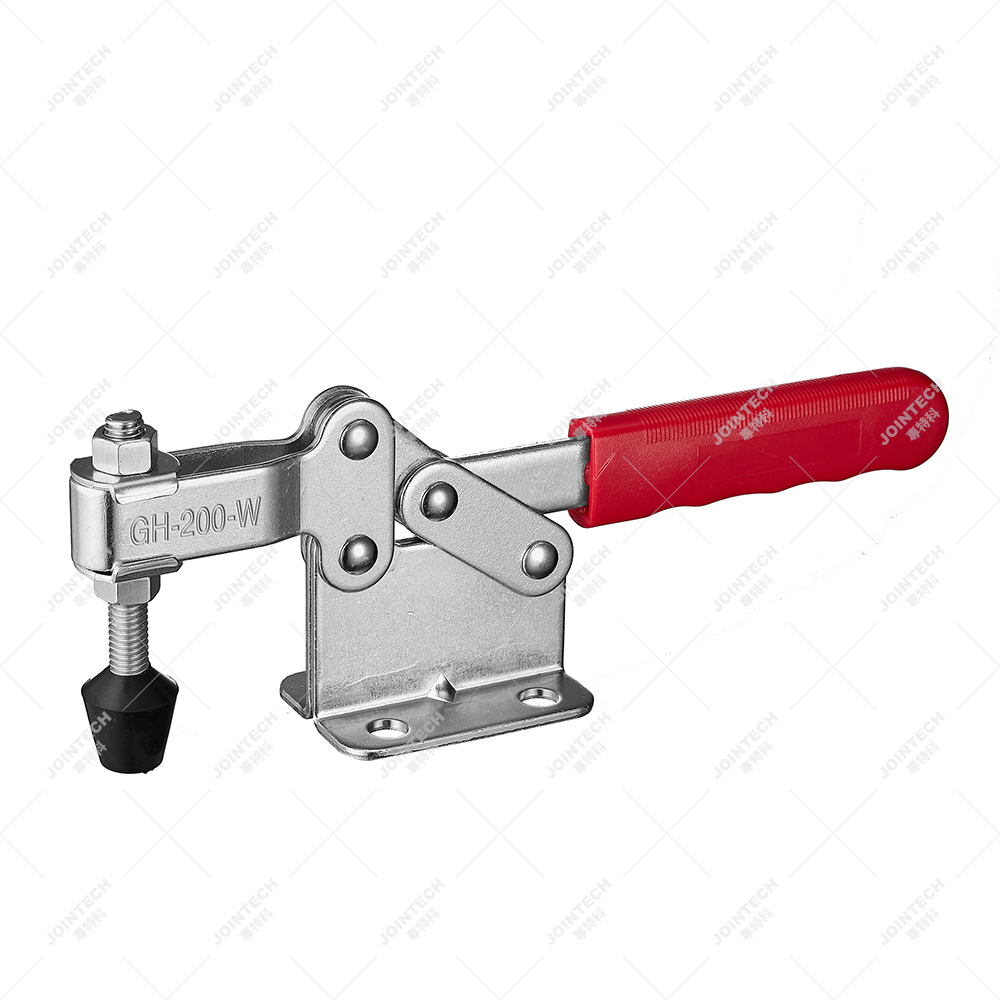

How to maintain the horizontal toggle clamp

The horizontal toggle clamp has high-quality performance and long service life. It has a wide range of applications and has made outstanding contributions to industrial production. In order to ensure good performance during the use of horizontal toggle clamp, some factors must not be ignored during its use. There are mainly the following aspects. Let us introduce some in detail below.


Here is the content list:

Maintenance of positioning pins

Maintenance of the indenter

Fixture parts

Management of horizontal toggle clamp



Maintenance of positioning pins

The positioning pins of each part on the horizontal toggle clamp must be in place. If they are missing, they must be replenished. The locating pins at all positions must not be excessively worn; the locating pins that are in contact with the parts must be measured with a vernier caliper. When the measured size does not match the original design of the locating pin, the locating pin must be replaced. The positioning pins of the inserts, indenters on the horizontal toggle clamp must have good stability and no looseness, which can play an accurate and good positioning function. There are no spatters on the positioning pins, which will not cause the shunt of the welding current.



Maintenance of the indenter

The rotary press head and the dumpling shaft of the press block in the horizontal toggle clamp must be tightly fastened. The indenter and pressure block need to have good working stability and good lubrication. The working surface of the briquette should not be excessively worn. If the wear is severe, it must be recorded and notified to the technician for adjustment.


After the manual indenter wrench is tightened, a certain pre-tightening force can be guaranteed, and the attached rubber head on the indenter is complete and undamaged, otherwise, it must be replaced.



Fixture parts

The nuts on the horizontal toggle clamp and the clamps at the dumpling shaft must be intact. If they are missing or damaged, they must be replaced. The bolts and screws on the horizontal toggle clamp must be properly disassembled and assembled. If the sliding wire or the end of the bolt is worn or damaged by collision, it must be replaced. The insulating connection parts of the horizontal toggle clamp need to be kept clean and free of splashes and other interference insulation. The clamp insulation connection parts are not damaged or missing, ensuring good insulation and no shunting.



Management of horizontal toggle clamp

Each horizontal toggle clamp user is responsible for the storage, operation, and use of tooling and clamps, and the equipment group is responsible for maintenance. The equipment group is responsible for the planning, regular inspection, maintenance, and maintenance of related tooling, and provides the necessary use and operation techniques.


Effectively manage the horizontal toggle clamp and ensure that the horizontal toggle clamp is used well. Standardize the provision, maintenance, overhaul, and maintenance of the horizontal toggle clamp to ensure that the horizontal toggle clamp can meet the requirements of production.


Jointech Industrial Co.,Ltd is constantly improving and innovating. All employees have rich production experience, strong product research, and development capabilities, and take market development as the goal. On the road of product development and design innovation, we continue to introduce new ones.
