How to choose a horizontal toggle clamp

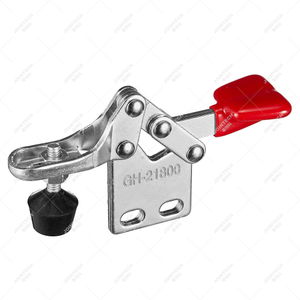

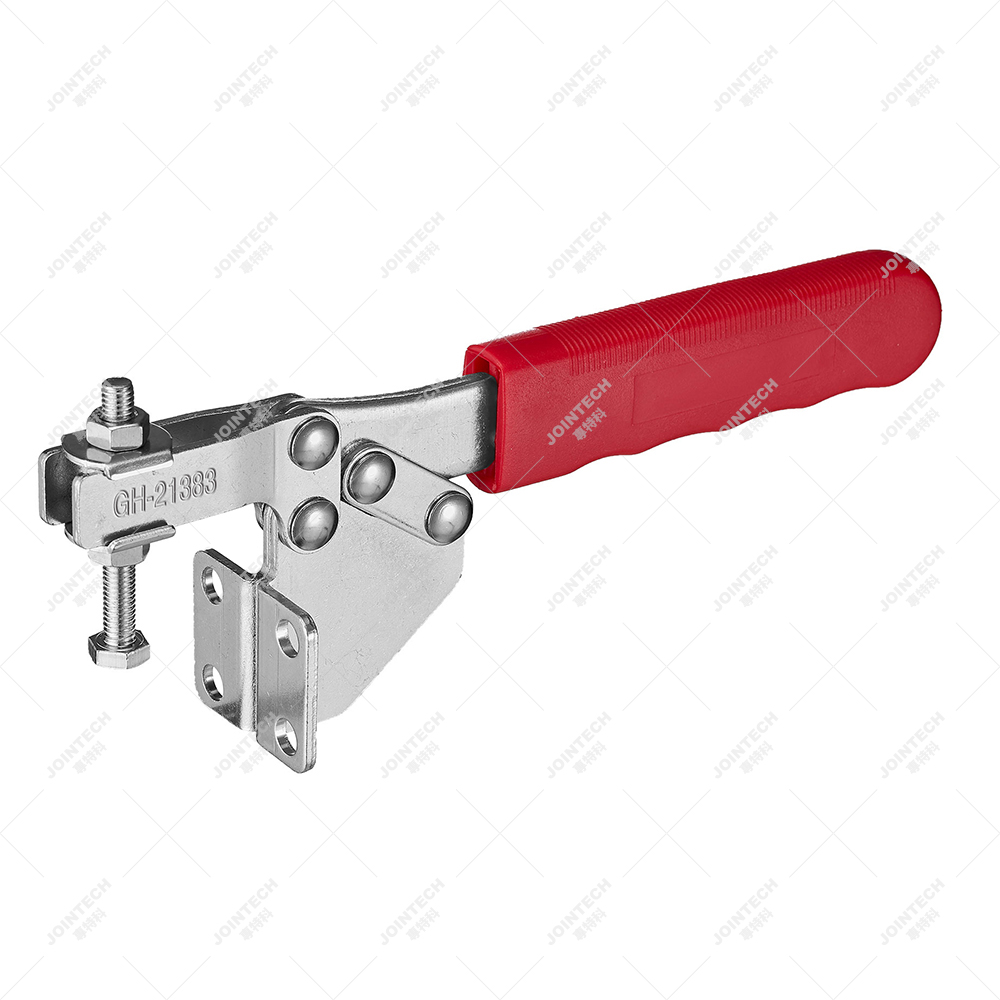

A horizontal toggle clamp is an important device for connecting devices and parts in industrial production. It plays an important role in fixing and protecting production safety. The horizontal toggle clamp is divided into two parts, front and rear, which are directly fixed on the worktable with screws. The front fixer is not movable, and the rear fixer can move horizontally along the parts to adapt to parts of different sizes. Today, let us introduce in detail how to choose a good horizontal toggle clamp, hoping to provide you with some help when buying.

Suitable size

Material and function considerations

Suitable size

Choosing a horizontal toggle clamp normally, a suitable horizontal toggle clamp and a rigid clamp can assist each other. In terms of size, if the part is too large and the horizontal toggle clamp is too small, the holder may not be able to be buckled; or it may cause uneven pressure points after buckling, which makes it impossible to fix it. If the part is too small and the horizontal toggle clamp is too large, the part will shake randomly in the holder, which may cause unstable production and damage to the product.

The choice of horizontal toggle clamp is about "proportionality". The ratio mentioned here especially refers to the ratio of horizontal toggle clamp and parts. What needs to be paid attention to is the degree of "veneering" between the parts and the horizontal toggle clamp and the compactness of the same parts on both sides of the horizontal toggle clamp. Generally speaking, a good horizontal toggle clamp veneer should be very compact, and the backplate of the entire fixture fully supports the back wall of the part, rather than only partially touching it. Partial contact can cause instability in production and errors due to pressure points.

Material and function considerations

When people choose the horizontal toggle clamp, they may be attracted by its color and shape, but what you need to consider in use is the weight, durability, adjustability, and simplicity of the horizontal toggle clamp. It is recommended that you focus on the functions and materials of the horizontal toggle clamp. A horizontal toggle clamp loses its essential function if it cannot be fixed, and all the force of the holder will be borne by the positioning element. So a durable and simple positioning element is an important part of the horizontal toggle clamp.

In terms of material, horizontal toggle clamps can be found in the market from the most advanced forged alloys to the lowest-class hard plastics. You can feel it yourself when you buy it. Whether the horizontal toggle clamp is sturdy and easy to operate also depends on its material. Different manufacturers use different technologies, and you can choose the one that suits your needs according to your needs.

All in all, the horizontal toggle clamp is mainly classified by force. You can choose the appropriate horizontal toggle clamp according to the force requirements during use.

Jointech Industrial Co.,Ltd has a group of people who understand horizontal toggle clamp technology, have high professional knowledge, and high level of operation. Our company continues to innovate the technical level of horizontal toggle clamp. You can consider our company's products.
