Heavy Duty Toggle Clamp Use For Electronic Industry

Availability:
Quantity:
  • GH-70730B
  • Jointech
  • 8205700000

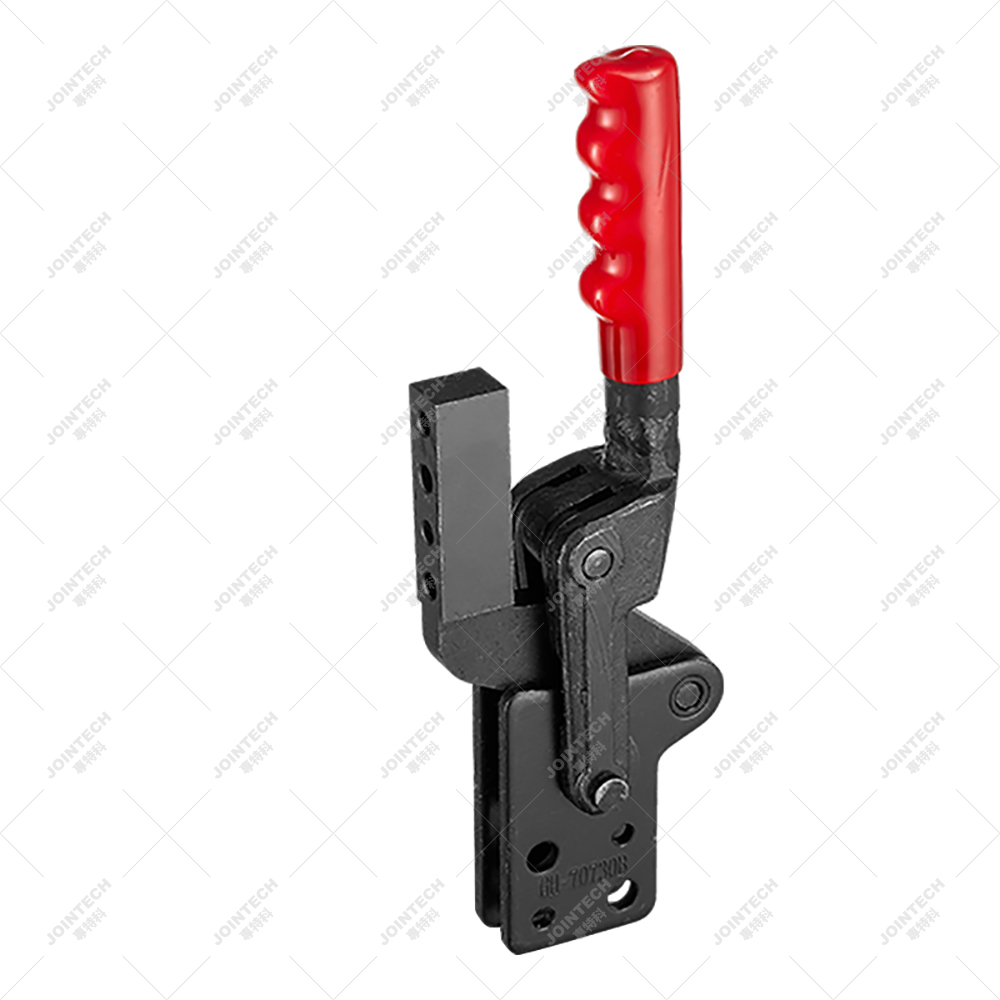

Heavy Duty Weldable Toggle ClampHeavy Duty Weldable Toggle Clamp

Weight: 1280g

Holding Capacity: 700kg

Bar Opens: 130°

Handle Opens: 92°

The Heavy Duty Toggle Clamp is designed according to the principle of the double-rocker mechanism in the plane four-bar mechanism. Its basic structure is composed of four components such as a connecting rod, a frame, and two connecting rods. When the two hinge points of the connecting rod and the connecting rod and the hinge point of one of the connecting rods and the frame are in the same straight line, the mechanism is at the dead center position. At this time, no matter how much reaction force there is, the pressed workpiece cannot loosen the indenter.
