Drop Forged Steel Black Coating Heavy Duty Weldable Toggle Clamp

Availability:
Quantity:

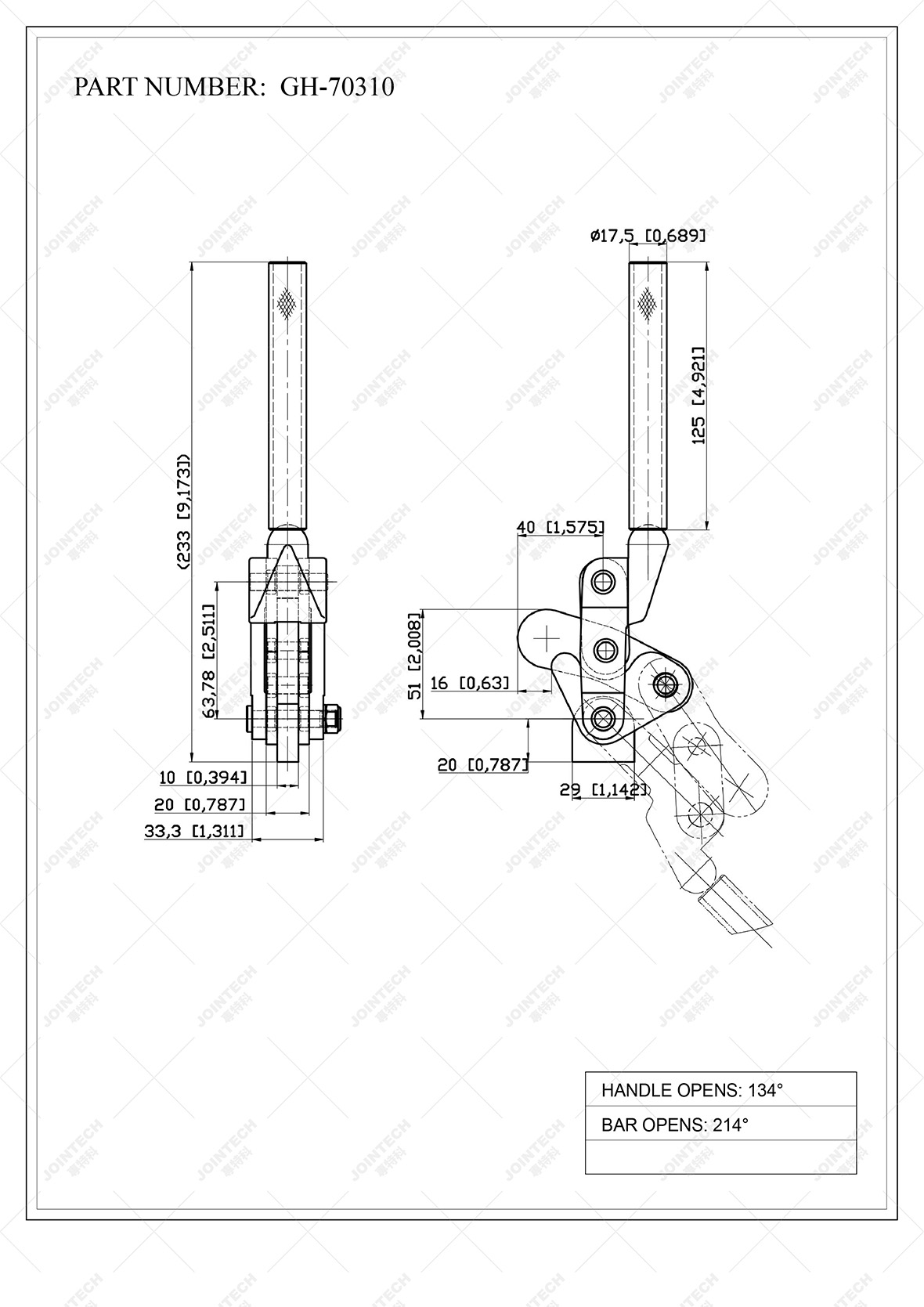

  • GH-70310
  • Jointech
  • 8205700000

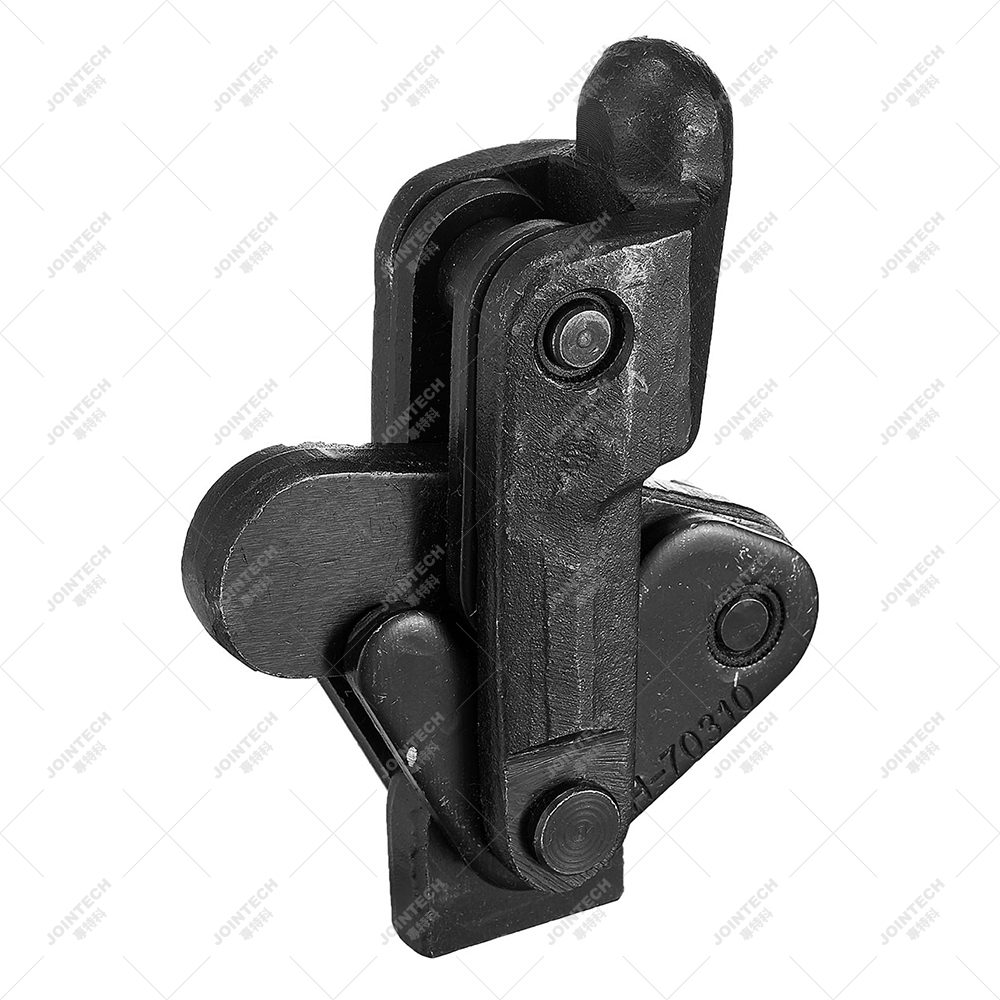

Heavy Duty Weldable Toggle ClampHeavy Duty Weldable Toggle Clamp

Weight: 850g

Holding Capacity: 500kg

Bar Opens: 214°

Handle Opens: 134°

The theoretical maximum holding or clamping force of a toggle action device is achieved when the three pivot points are in a straight line. To make allowance for external forces due to vibration and changing load conditions in industrial use, the proper amount of over travel of the center pivot point has been carefully calculated to yield maximum clamping pressure ,while achieving positive locking position.
