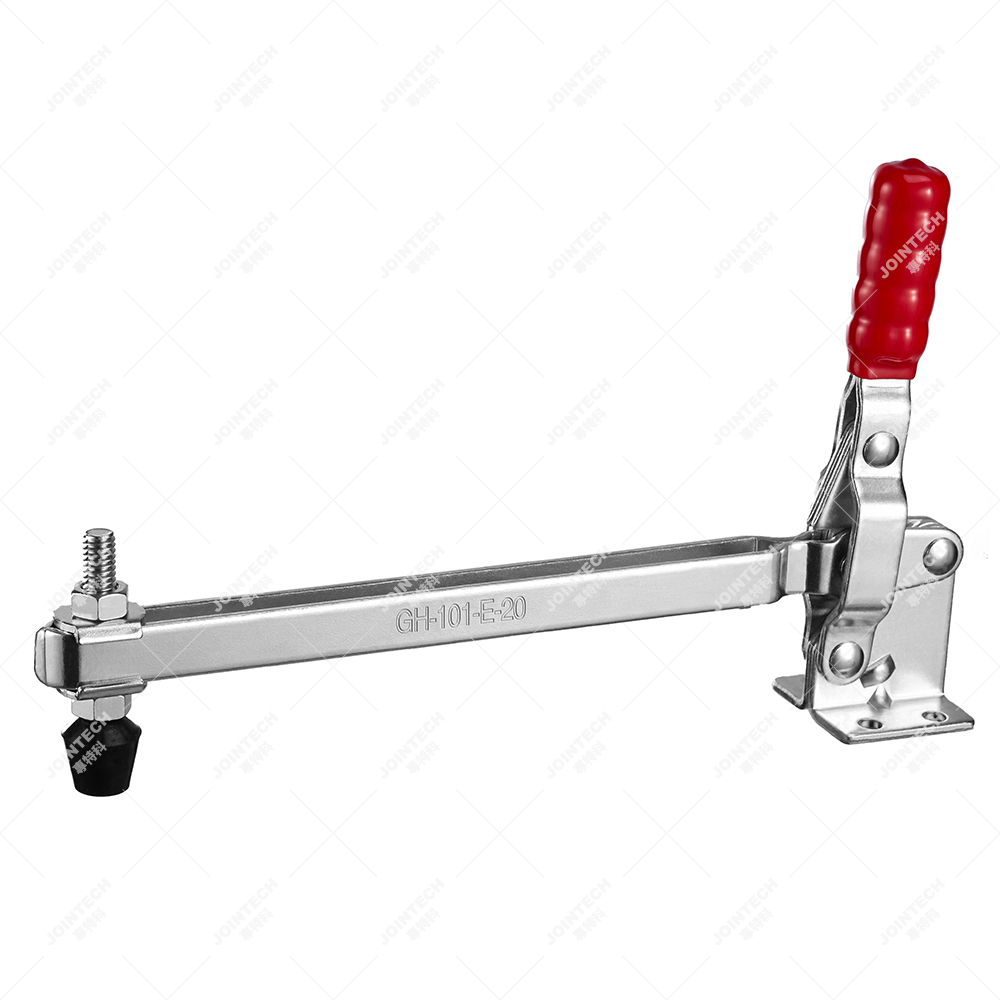

Design knowledge and design points of Vertical Toggle Clamp

The special Vertical Toggle Clamp with good economy should adopt standard components and standard structure as much as possible, and strive to be simple in structure and easy to manufacture, to reduce the manufacturing cost of the fixture. Therefore, the necessary technical and economic analysis of the Vertical Toggle Clamp program should be carried out according to the order and production capacity during the design to improve the economic benefits of the Vertical Toggle Clamp in production. Next, let's take a look at a summary of the basic design knowledge and design points of Vertical Toggle Clamp. Here are some answers.


Basic knowledge of the design of Vertical Toggle Clamp.

A summary of the design points of Vertical Toggle Clamp.


Basic knowledge of the design of Vertical Toggle Clamp.

First, to ensure the processing accuracy of the workpiece, the key to ensuring the processing accuracy is to correctly select the positioning datum, positioning method, and positioning components. If necessary, positioning error analysis is additionally needed. Pay attention to the structure of other parts in the Vertical Toggle Clamp. The impact on machining accuracy ensures that the Vertical Toggle Clamp can meet the machining accuracy requirements of the workpiece. Second, the complexity of the Vertical Toggle Clamp for improving production efficiency should be adapted to the production capacity, and various fast and efficient clamping mechanisms should be adopted as far as possible to ensure convenient operation, shorten the auxiliary time, and improve production efficiency.

Third, the structure of the special Vertical Toggle Clamp with good process performance should be simple and reasonable, which is convenient for manufacturing, assembly, adjustment, inspection, maintenance, etc. Fourth, with good performance, the Vertical Toggle Clamp should have sufficient strength and rigidity, and the operation should be simple, labor-saving, safe, and reliable. Beneath the premise that objective conditions allow and are economical and applicable, pneumatic, hydraulic, and alternative mechanized clamping devices ought to be used the maximum amount as attainable to scale back the labor intensity of the operator. Vertical Toggle Clamp ought to conjointly facilitate chip removal. Once necessary, a chip removal structure is often set to forestall chips from damaging the positioning of the work and damaging the tool, and preventing the buildup of chips from transfer heaps of warmth and inflicting deformation of the processing system.


A summary of the design points of Vertical Toggle Clamp.

Vertical Toggle Clamp design is generally carried out by the specific requirements of a certain process after the machining process of the part is formulated. In formulating the process, the possibility of fixture realization should be fully considered, and when designing the Vertical Toggle Clamp, it is possible to make amendments to the process if necessary. The design quality of Vertical Toggle Clamp should be based on whether it can stably guarantee the processing quality of the workpiece, high production efficiency, low cost, convenient chip removal, safe operation, labor-saving, easy manufacturing, and easy maintenance.
