Big Holding Force Weldable Toggle Clamp Use in Electronic Product

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • GH-70320

  • Jointech

  • 7326909000

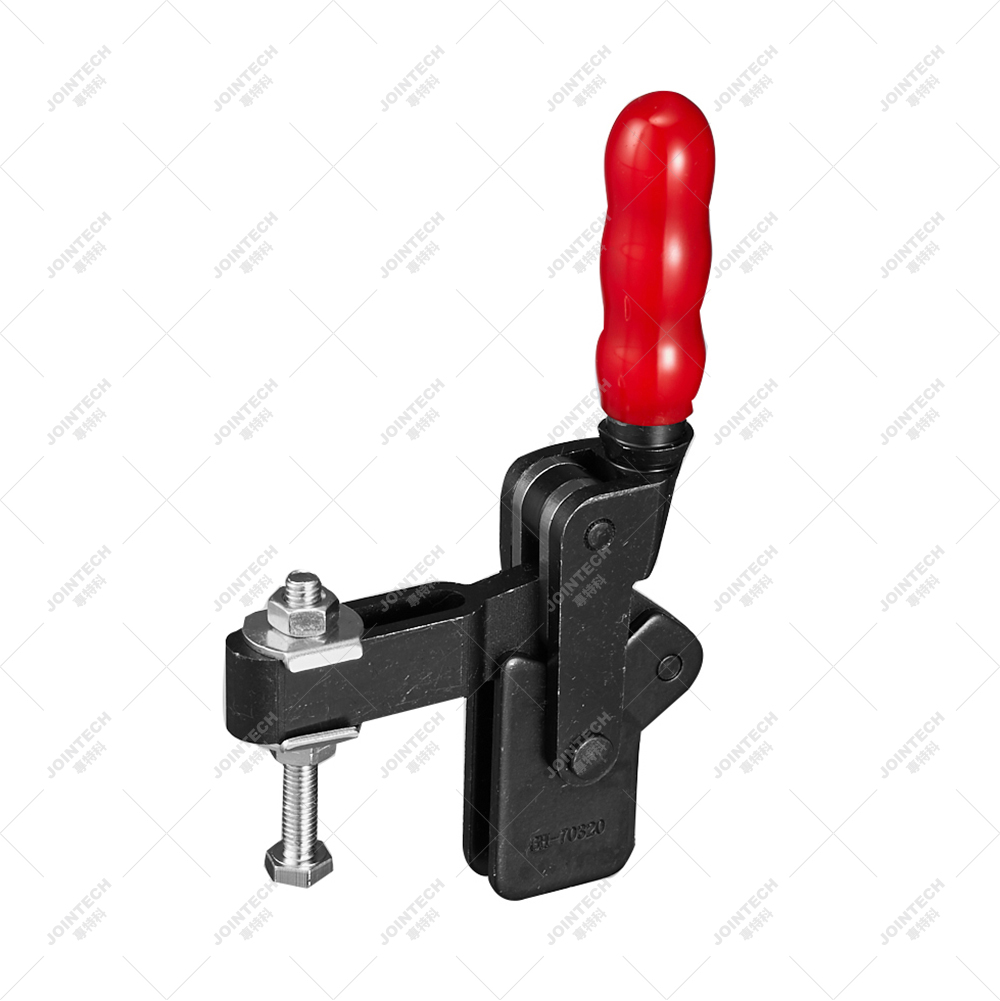

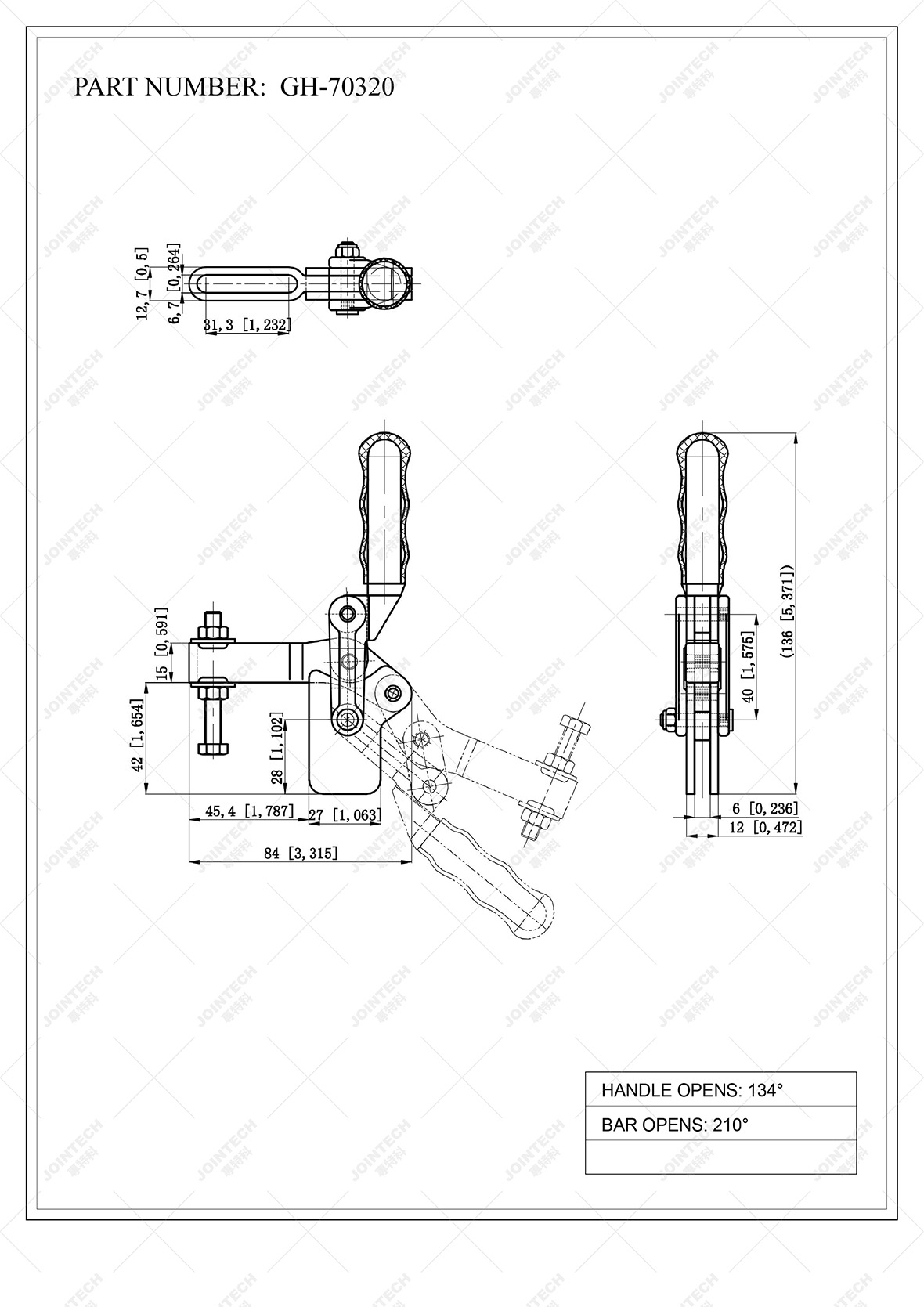

Heavy Duty Weldable Toggle ClampHeavy Duty Weldable Toggle Clamp

Weight: 290g

Holding Capacity: 300kg

Bar Opens: 210°

Handle Opens: 134°

Before you drill any holes, set up the clamp with the lever raised about an inch above the closed position, and use that as a guide. The good news is that you can adjust the tension after installation using the nuts on the end of the tenion arm.

A toggle clamp is a linkage that can apply a powerful clamping force. The good news is that it requires little effort to lock or even unlock. With its ease of use, it’s no wonder why many people make it a leading option. Typically, this is accomplished thru a geometric trick. This directs the force into the base. But it does not oppose the lock or unlock action. You can look at common styles that demonstrate the trick.
